Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

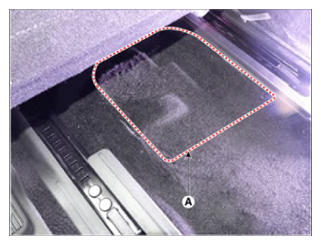

  2. Remove the rear floor carpet surface cover (A).
    G15477167Courtesy of HYUNDAI MOTOR AMERICA

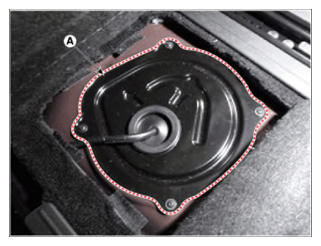

  3. Remove the fuel pump surface cover (A) after loosening the mounting screws.
    G15477168Courtesy of HYUNDAI MOTOR AMERICA

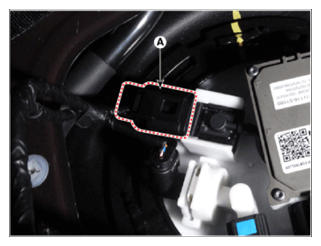

  4. Disconnect the fuel tank pressure sensor connector (A).
    G15477169Courtesy of HYUNDAI MOTOR AMERICA

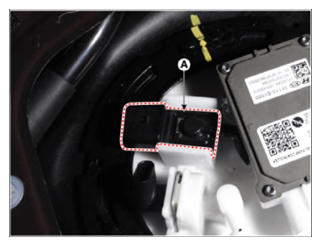

  5. Remove the fuel tank pressure sensor (A).
    G15477170Courtesy of HYUNDAI MOTOR AMERICA
