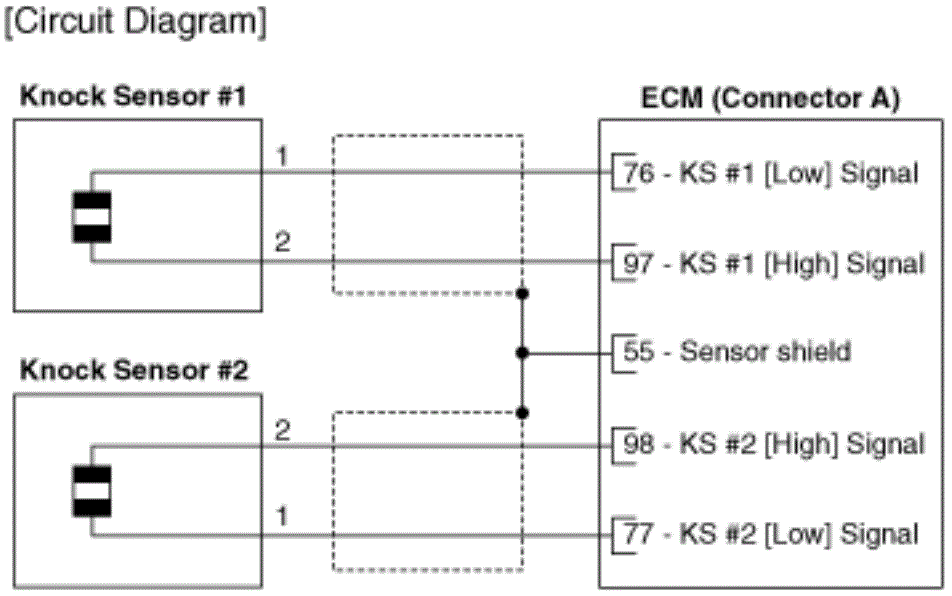

Circuit Diagram: Notes

G15477104Courtesy of HYUNDAI MOTOR AMERICA

[Connection Information]

TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (76) KS #1 [Low] Signal
2 ECM Connector A (97) KS #1 [High] Signal
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (77) KS #2 [Low] Signal
2 ECM Connector A (98) KS #2 [High] Signal
