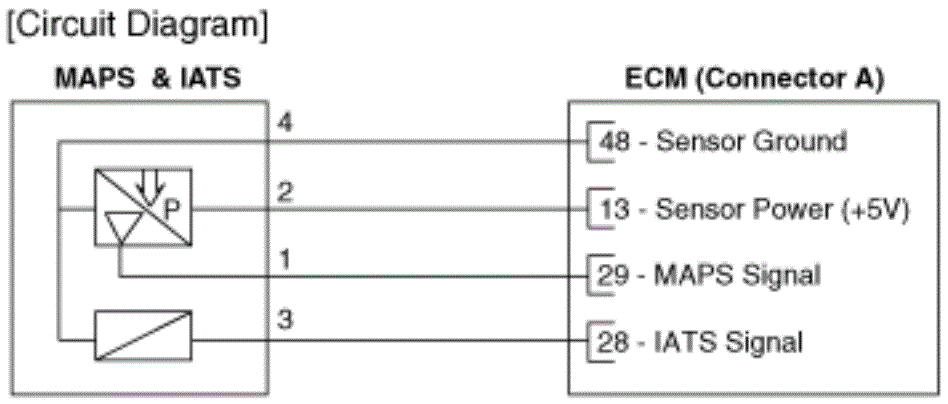

Circuit Diagram: Notes

G15477084Courtesy of HYUNDAI MOTOR AMERICA

[Connection Information]

Terminal Connected Function
1 ECM Connector A (29) MAPS Signal
2 ECM Connector A (13) Sensor Power (+5V)
3 ECM Connector A (28) IATS Signal
4 ECM Connector A (48) Sensor Ground
