Variable Force Solenoid (VFS) [Bank 2/Intake]

Disconnect the battery (-) terminal.

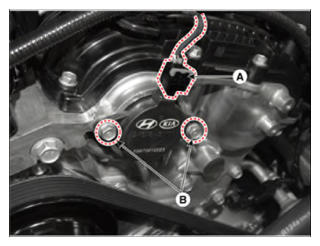

Disconnect the VFS connector (A).
Remove the mounting bolts (B), and then remove the VFS from the engine.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
