Components Location

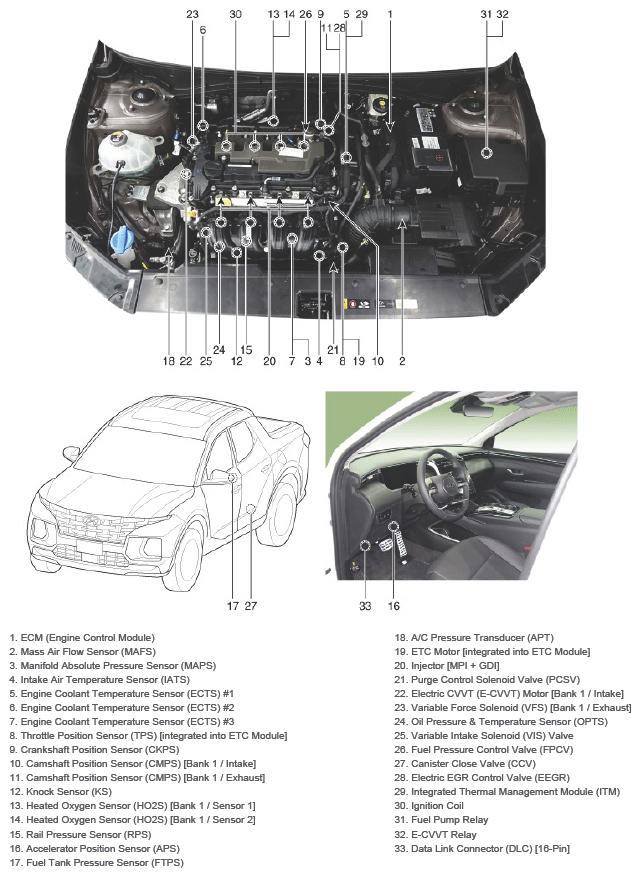

G14774464Courtesy of HYUNDAI MOTOR AMERICA

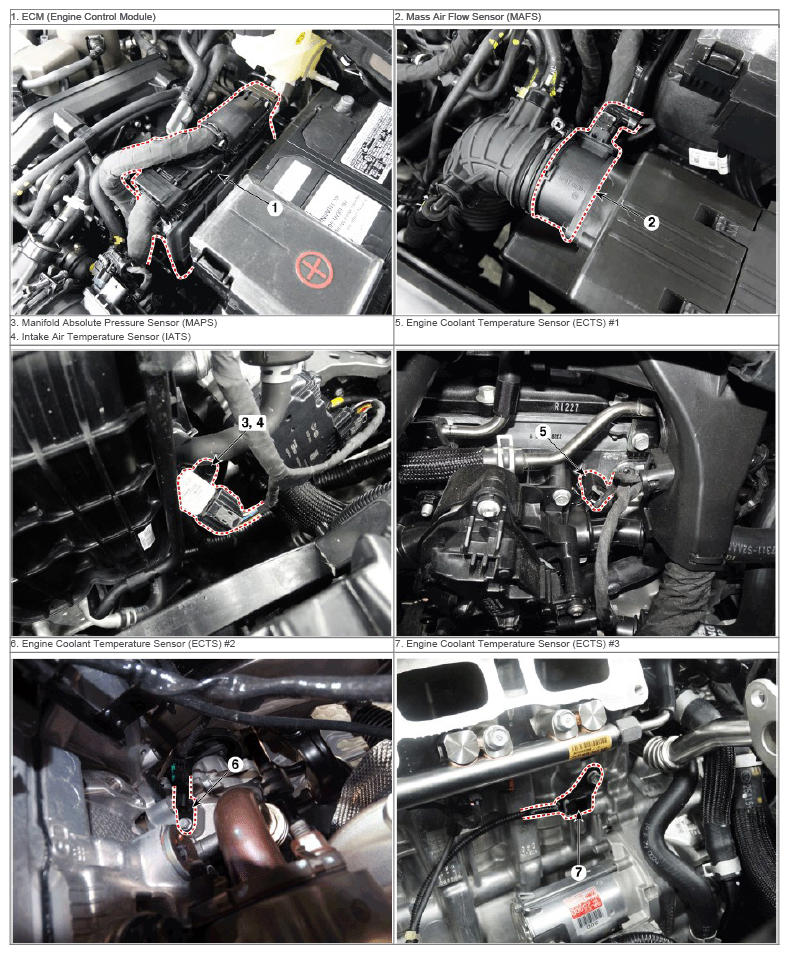

G14774465Courtesy of HYUNDAI MOTOR AMERICA

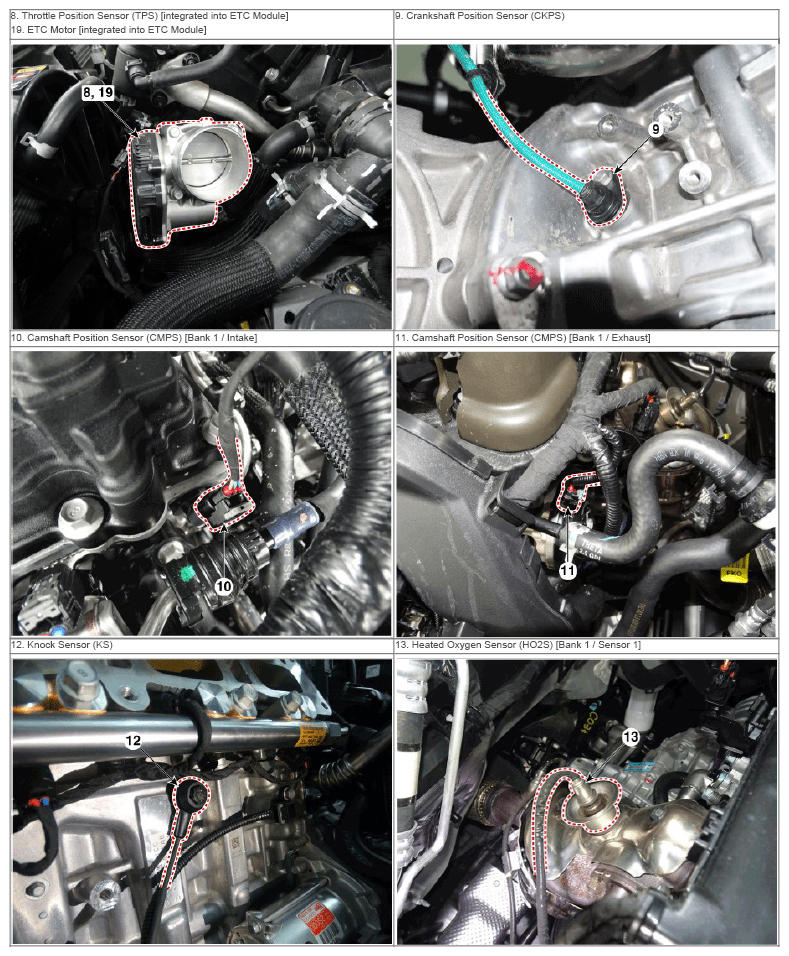

G14774466Courtesy of HYUNDAI MOTOR AMERICA

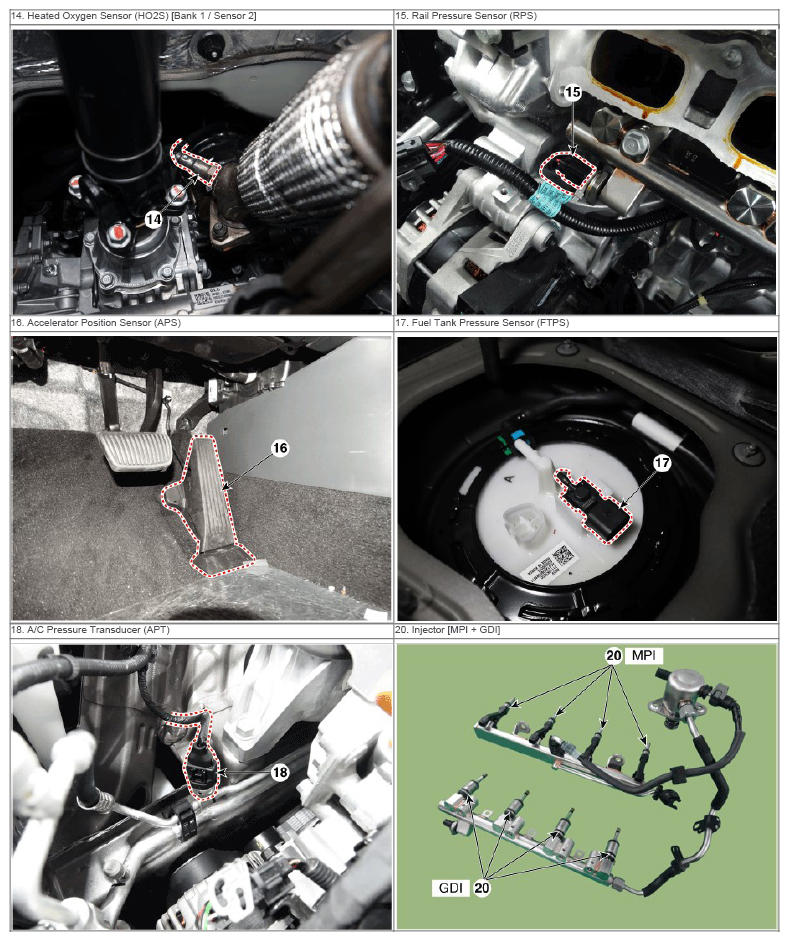

G14774467Courtesy of HYUNDAI MOTOR AMERICA

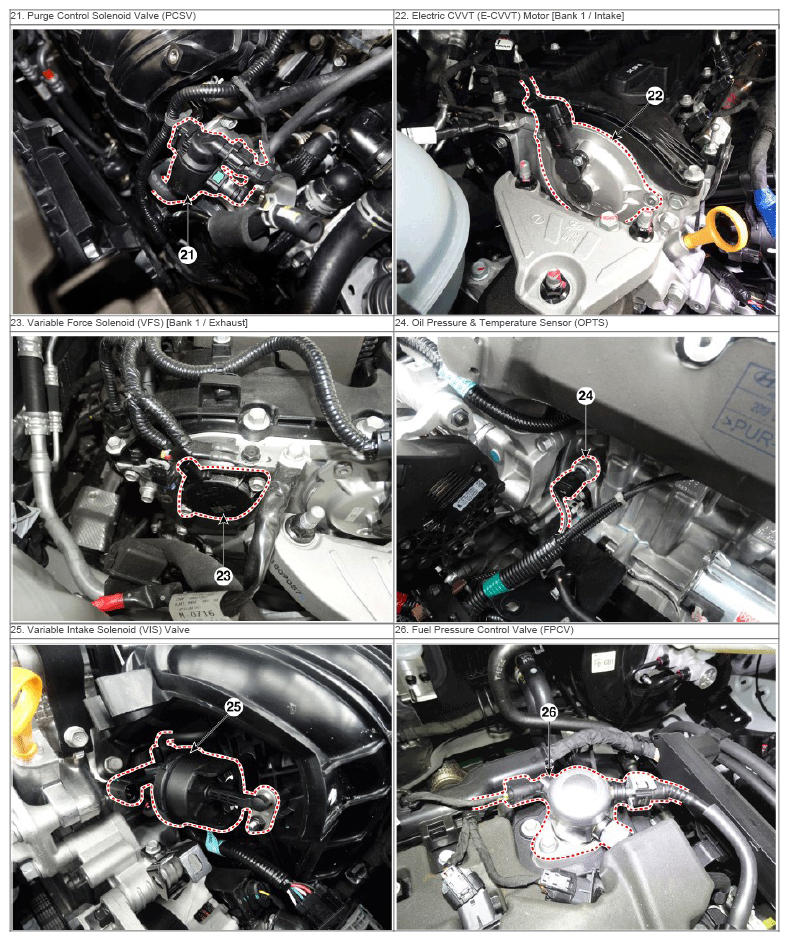

G14774468Courtesy of HYUNDAI MOTOR AMERICA

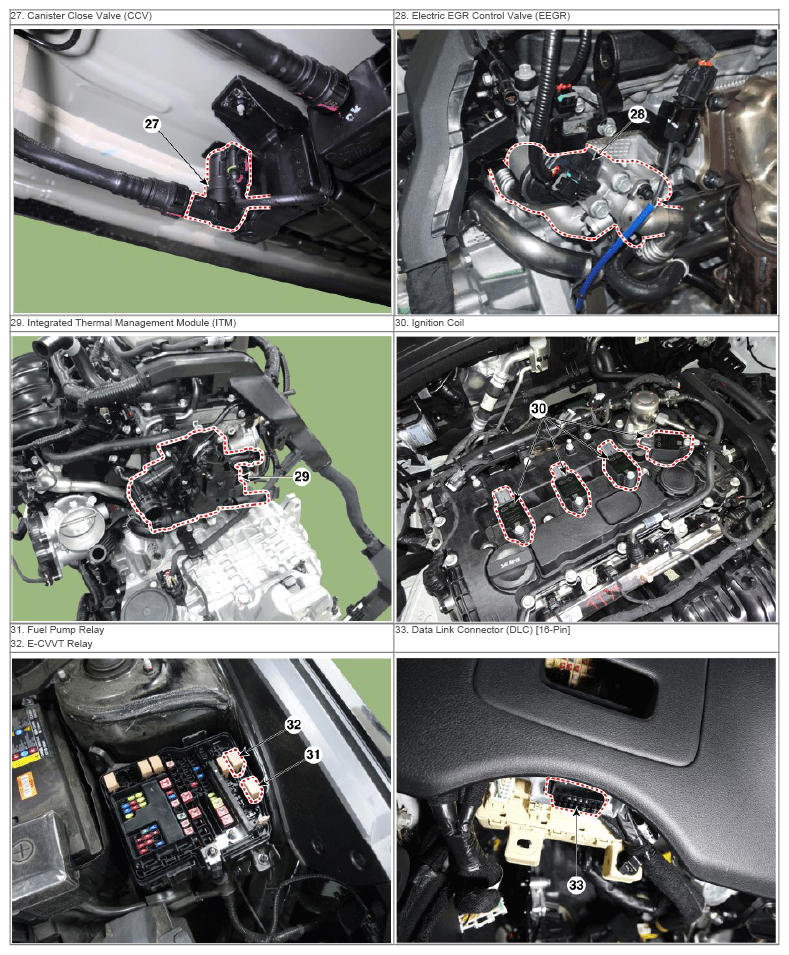

G14774469Courtesy of HYUNDAI MOTOR AMERICA
