Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

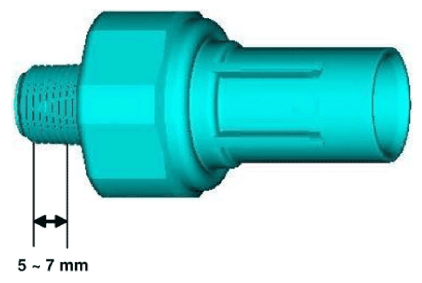

    • Apply the sealant to the sensor.

      Specification  : TB2403

      Thickness  : 0.2 - 0.4 mm (0.0079 - 0.0157 in.)

      G14774670Courtesy of HYUNDAI MOTOR AMERICA
