Repair Procedures: Installation

NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  1. Install in the reverse order of removal.

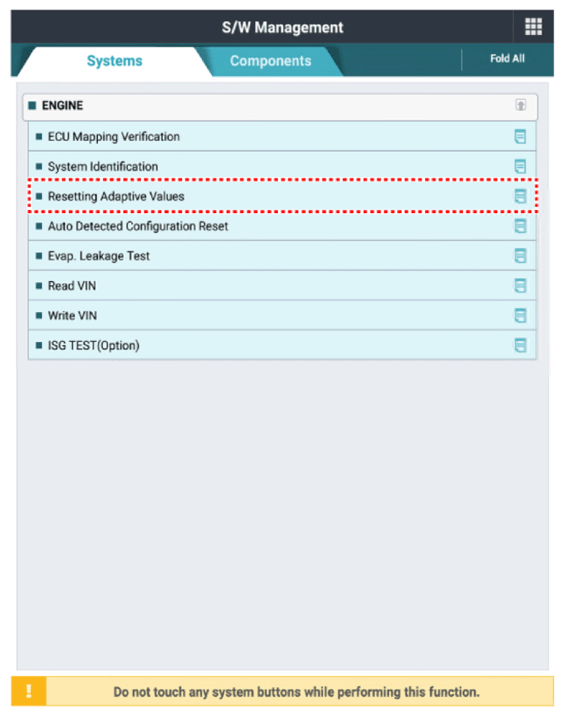

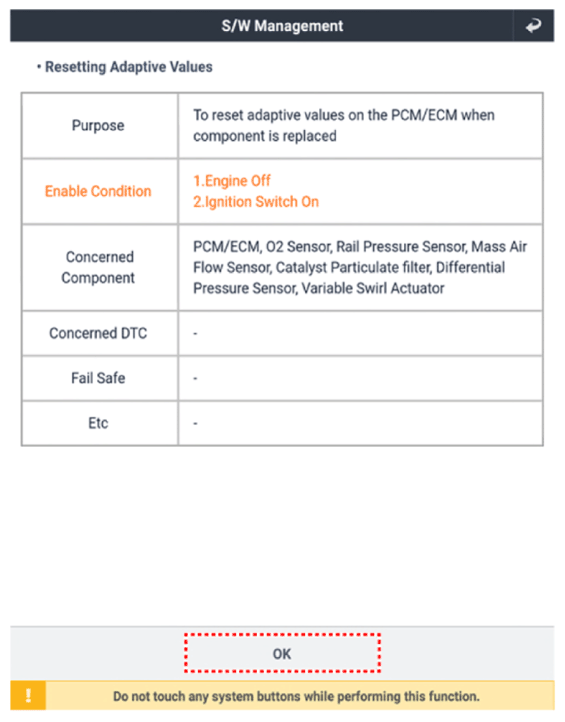

  2. Reset the ECM adaptive values.
G14774560Courtesy of HYUNDAI MOTOR AMERICA
G14774561Courtesy of HYUNDAI MOTOR AMERICA
