Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

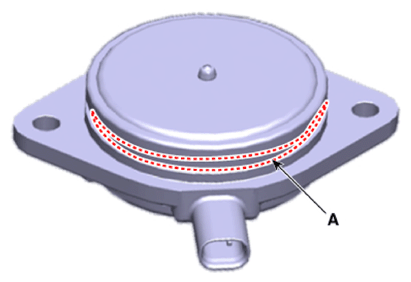

    • Do not reuse the O-ring (A).
      G14774612Courtesy of HYUNDAI MOTOR AMERICA
    • Apply the engine oil on new O-ring (A).
