Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")

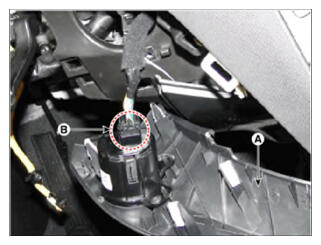

  3. Disconnect the start/stop button connector (B) after removing the center fascia garnish (A).
    G16149375Courtesy of HYUNDAI MOTOR AMERICA

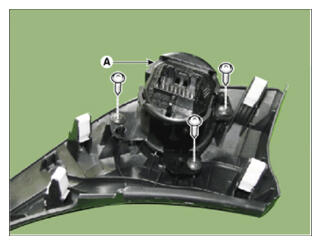

  4. Remove the start/stop button (A) after removing the screws (3EA).
    G16149376Courtesy of HYUNDAI MOTOR AMERICA
