Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER COVER ")

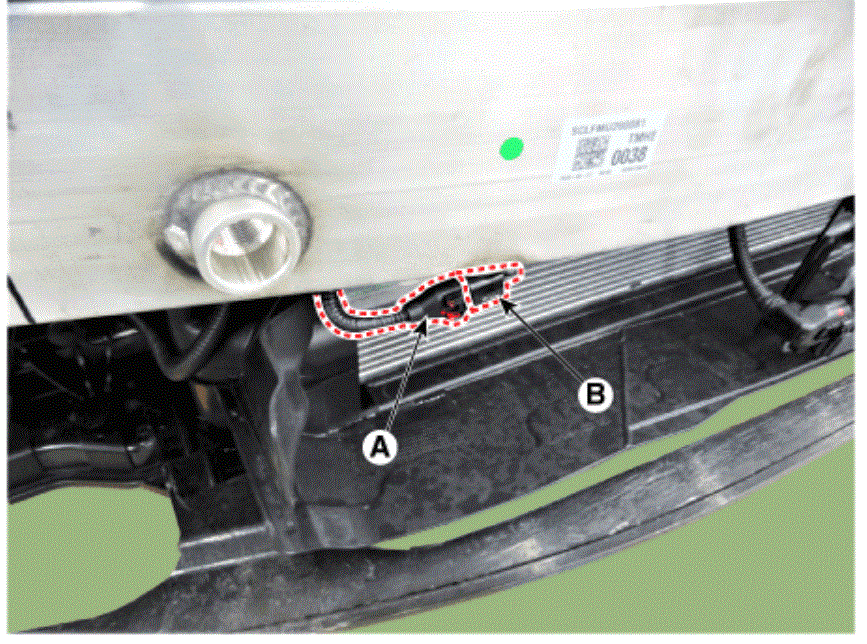

  3. Disconnect the ATS connector (A), and then removing the sensor (B).
G16146369Courtesy of HYUNDAI MOTOR AMERICA
