Components Location

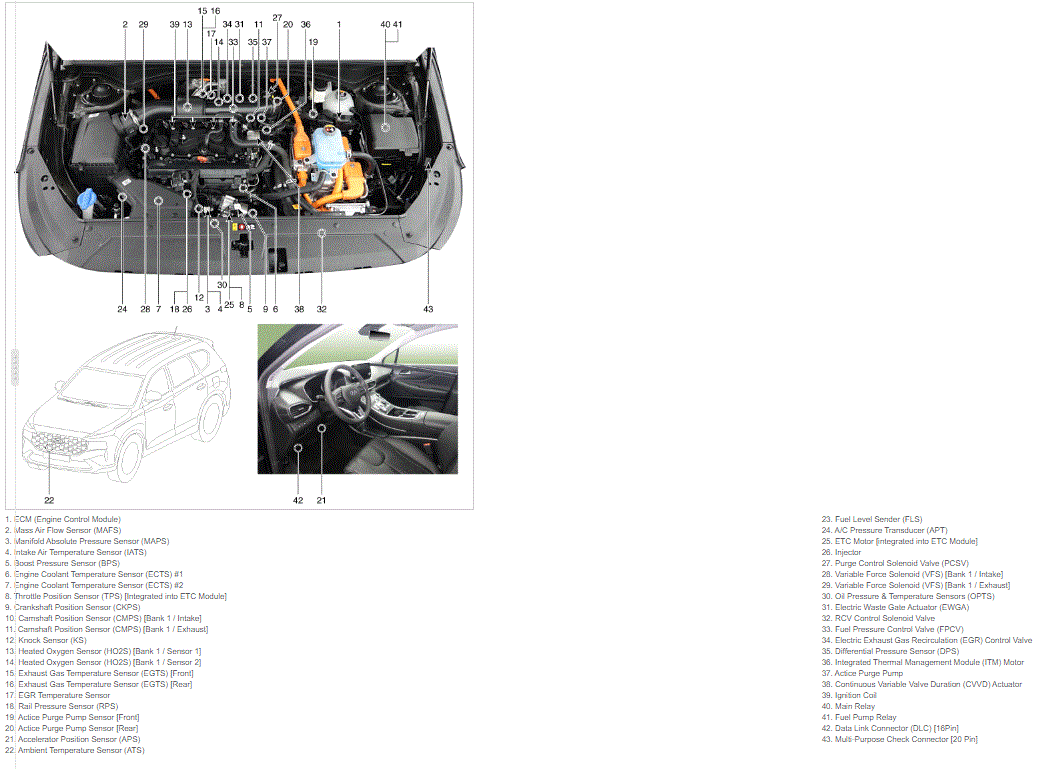

G16146331Courtesy of HYUNDAI MOTOR AMERICA

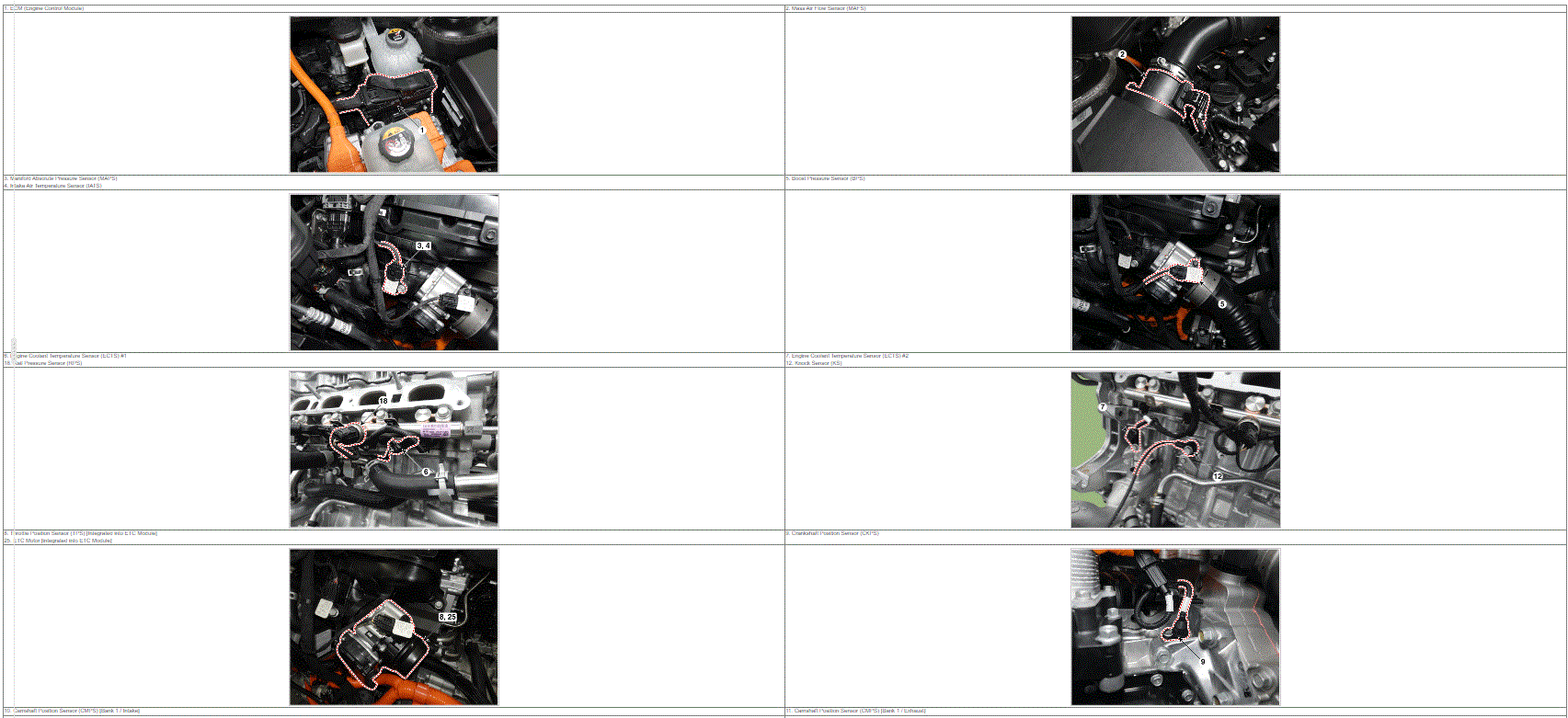

G16146332Courtesy of HYUNDAI MOTOR AMERICA

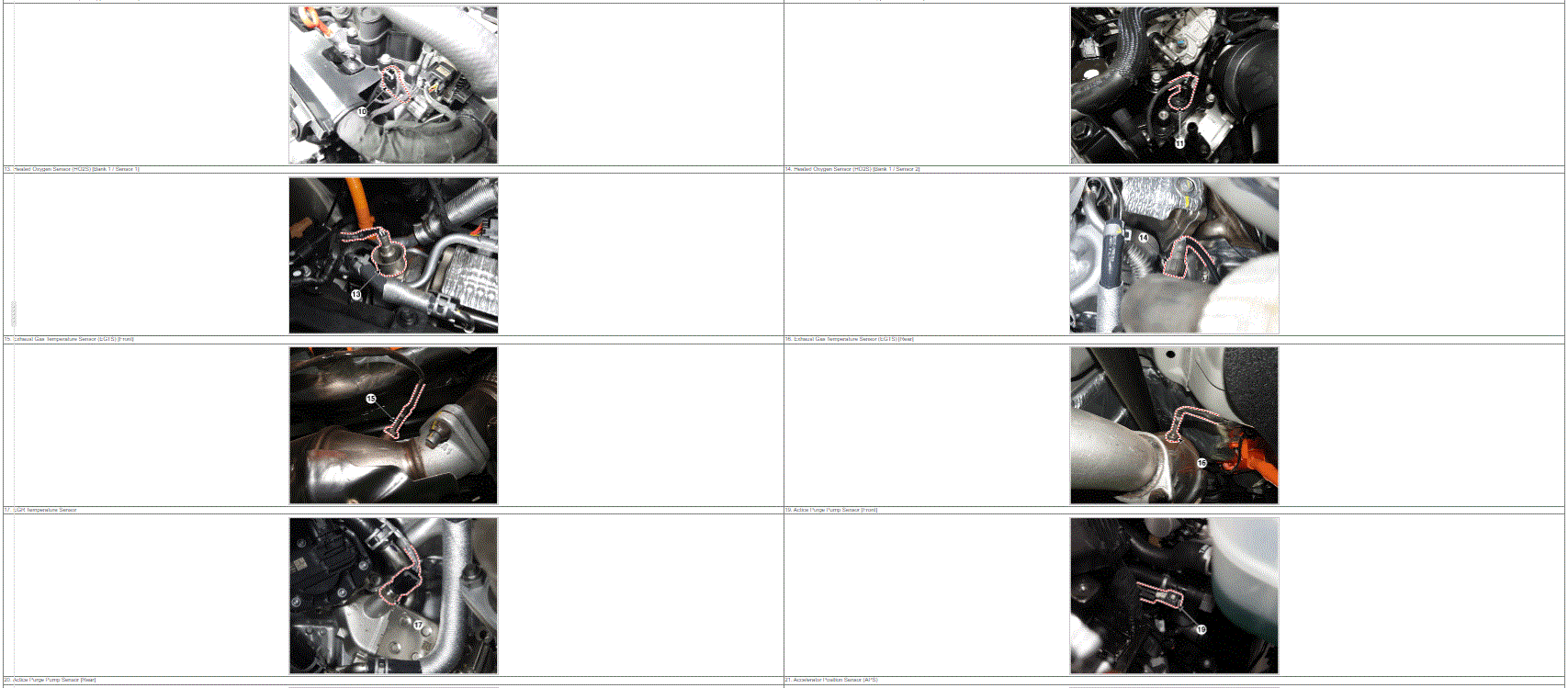

G16146333Courtesy of HYUNDAI MOTOR AMERICA

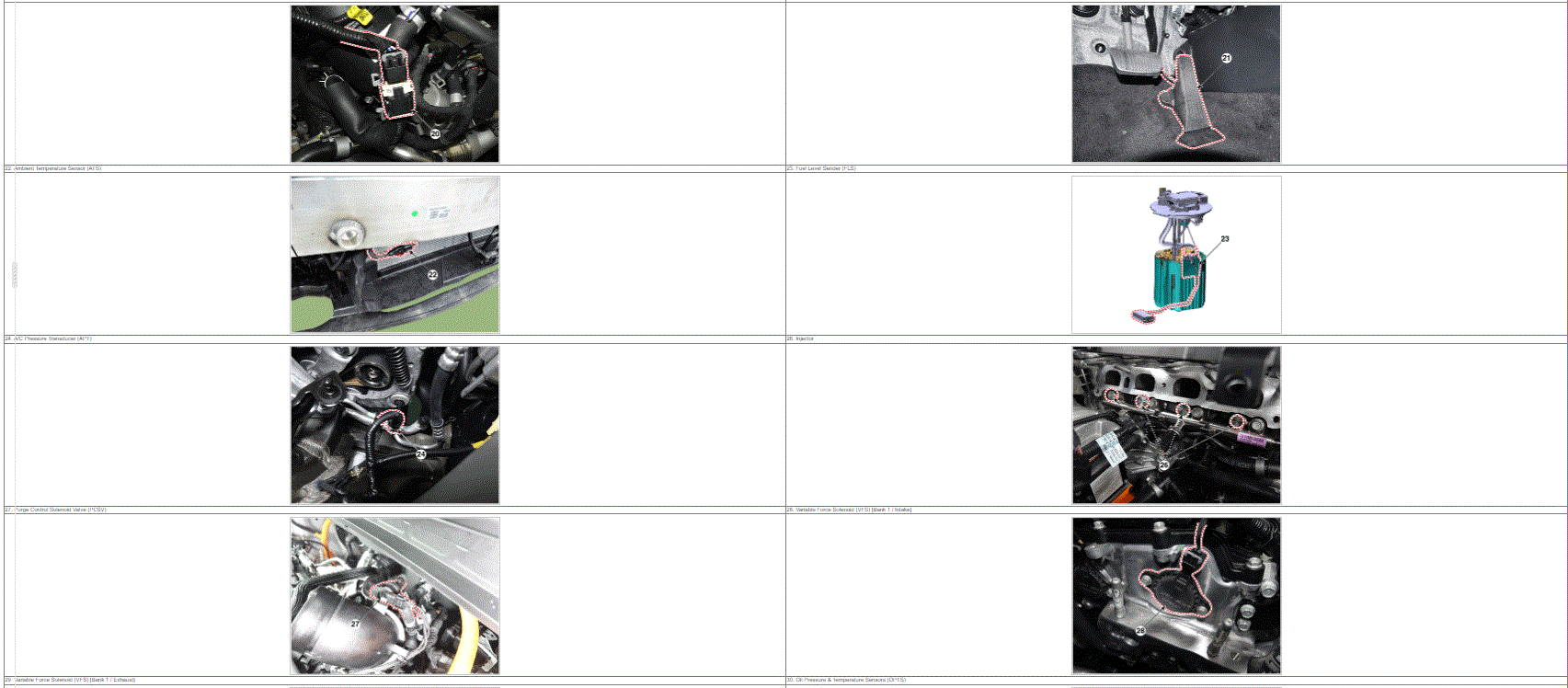

G16146334Courtesy of HYUNDAI MOTOR AMERICA

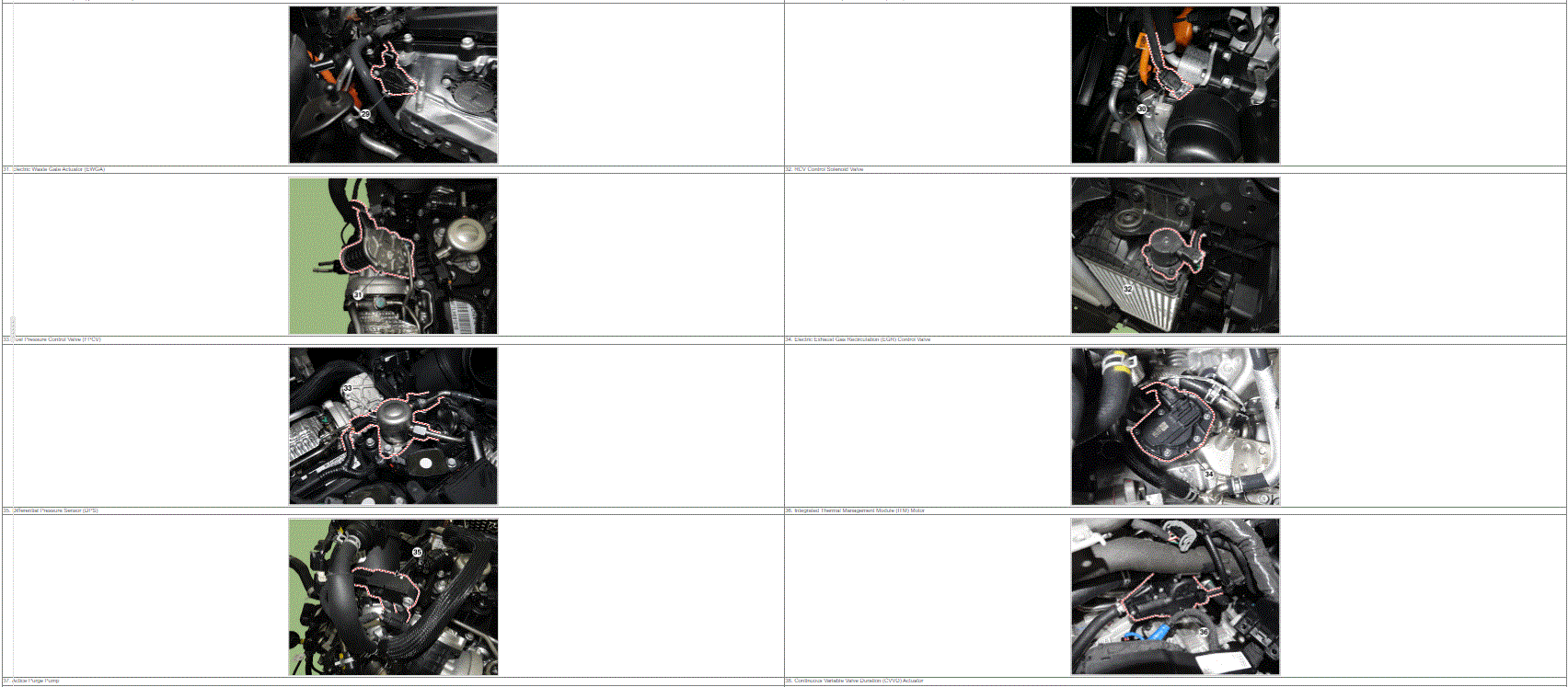

G16146335Courtesy of HYUNDAI MOTOR AMERICA

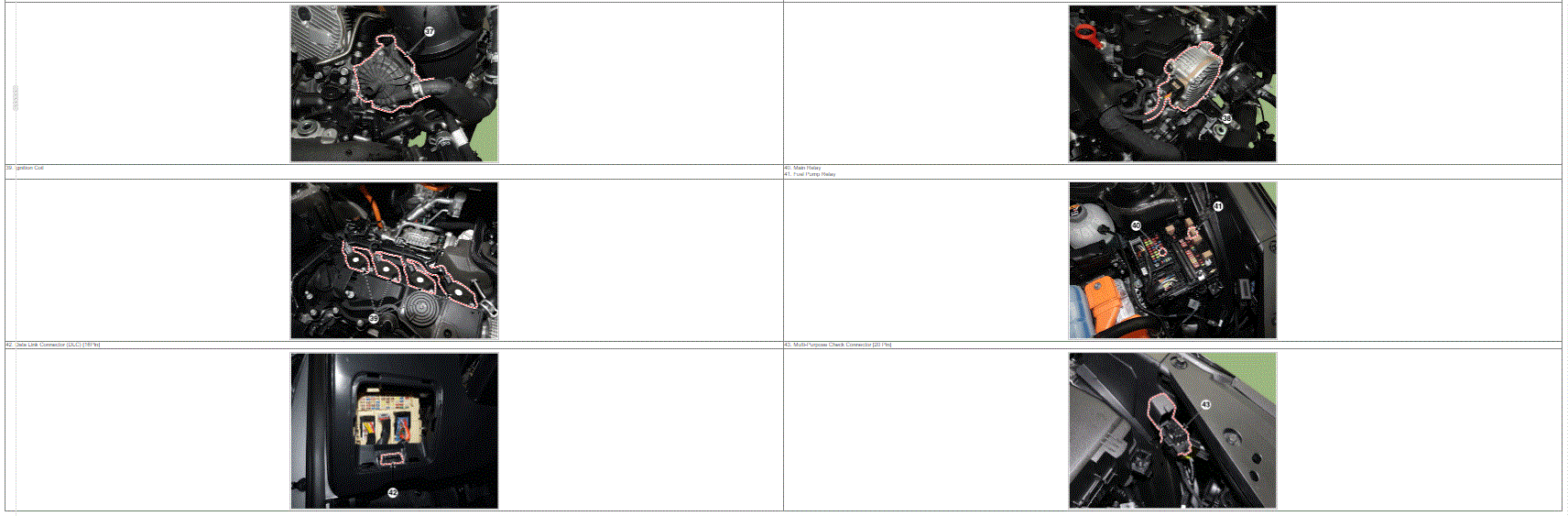

G16146336Courtesy of HYUNDAI MOTOR AMERICA
