Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intercooler outlet hose.
(Refer to Engine Mechanical System - "INTERCOOLER ")

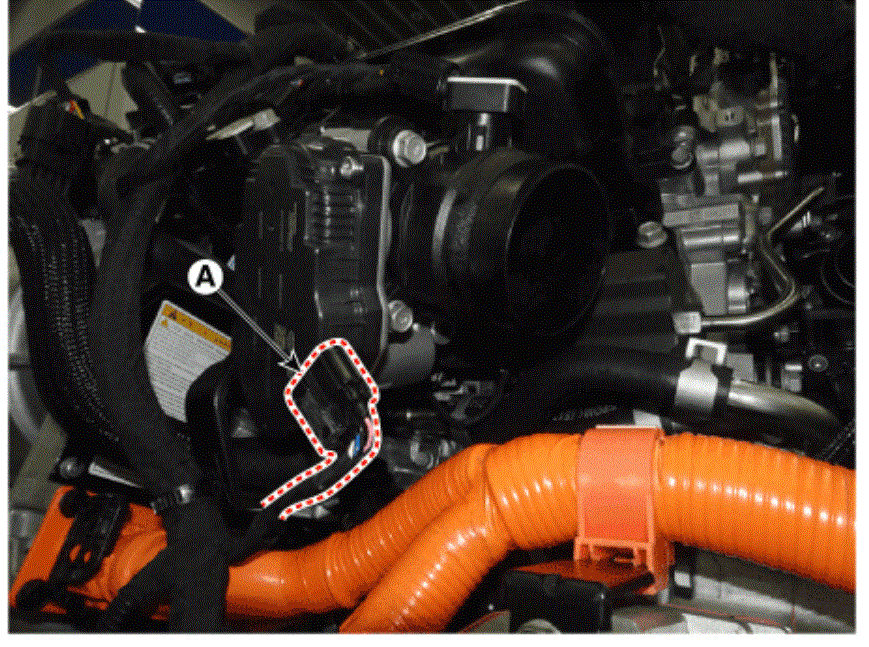

- Disconnect the ETC Module Connector (A).

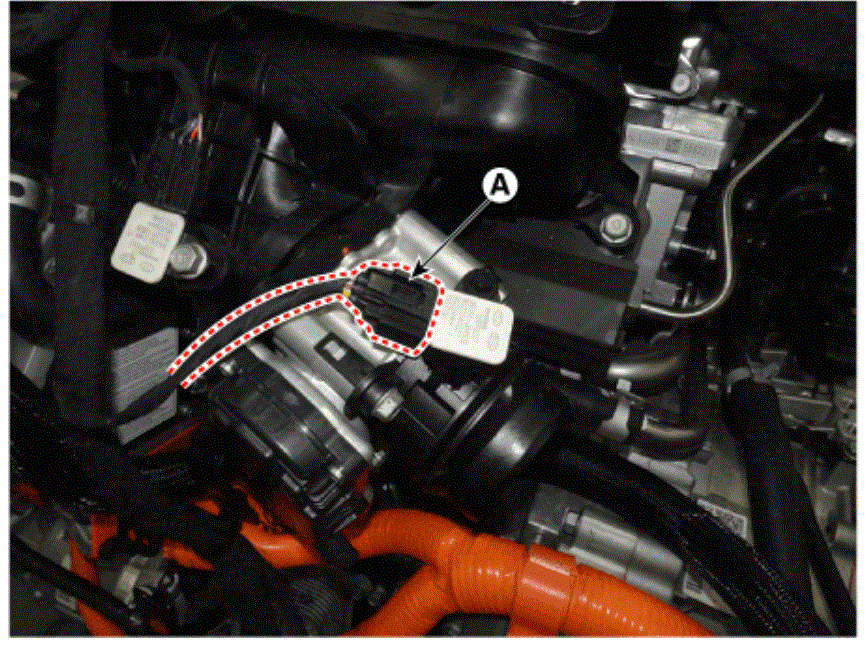

- Disconnect the BPS connector (A).

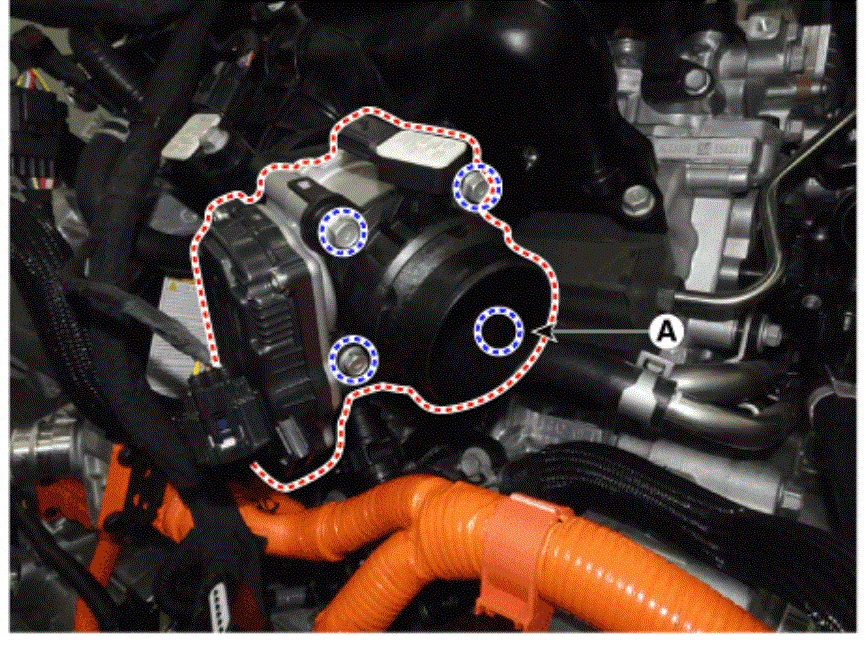

- Remove the ETC module (A) after loosening the mounting bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
