Repair Procedures: Removal

Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the turbo charger inlet pipe.
(Refer to Engine Mechanical System - "TURBO CHARGER ")

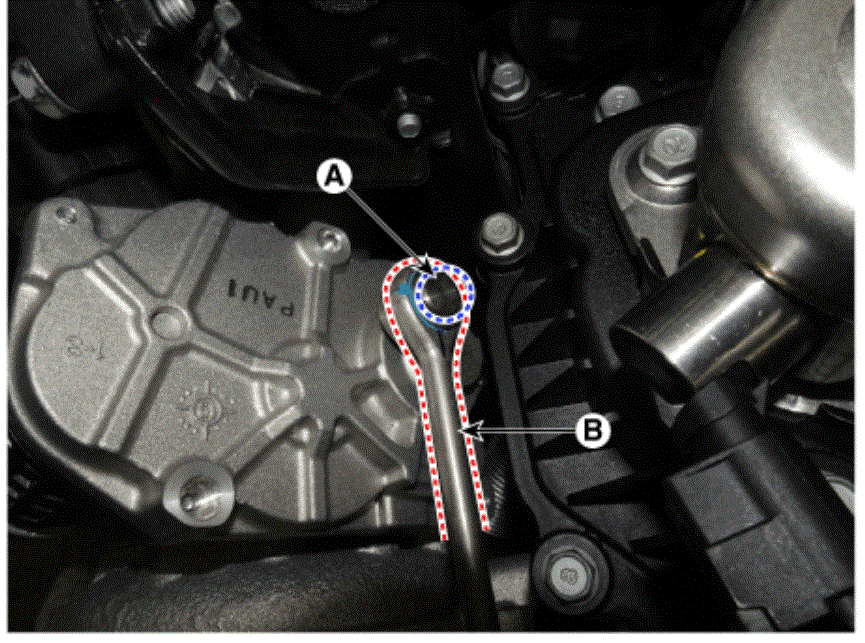

Remove the C-ring (A), and then removing the shaft link assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

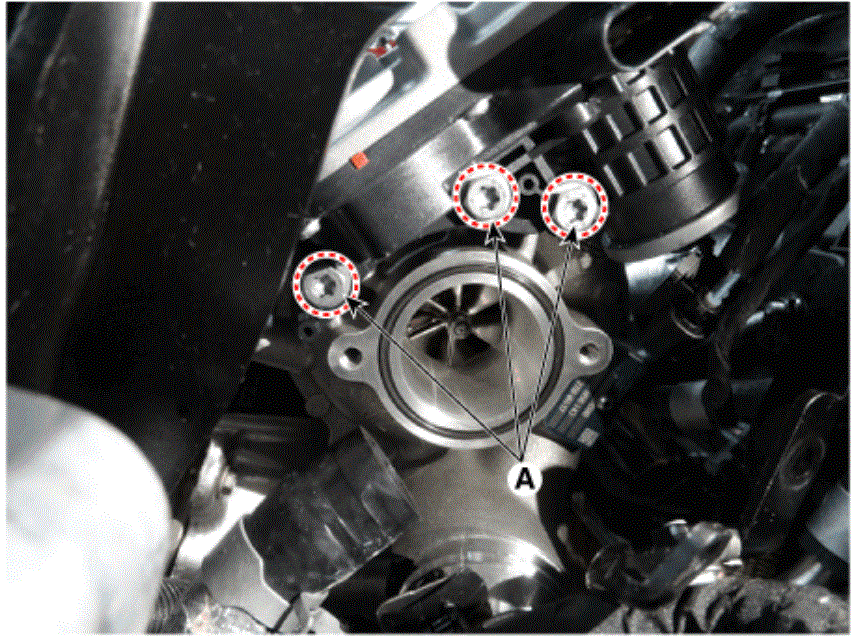

Remove the EWGA after loosening the mounting bolt (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
