[Engine Coolant Temperature Sensor (ECTS) #1]
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the delivery pipe.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")
- Disconnect the ECTS connector.

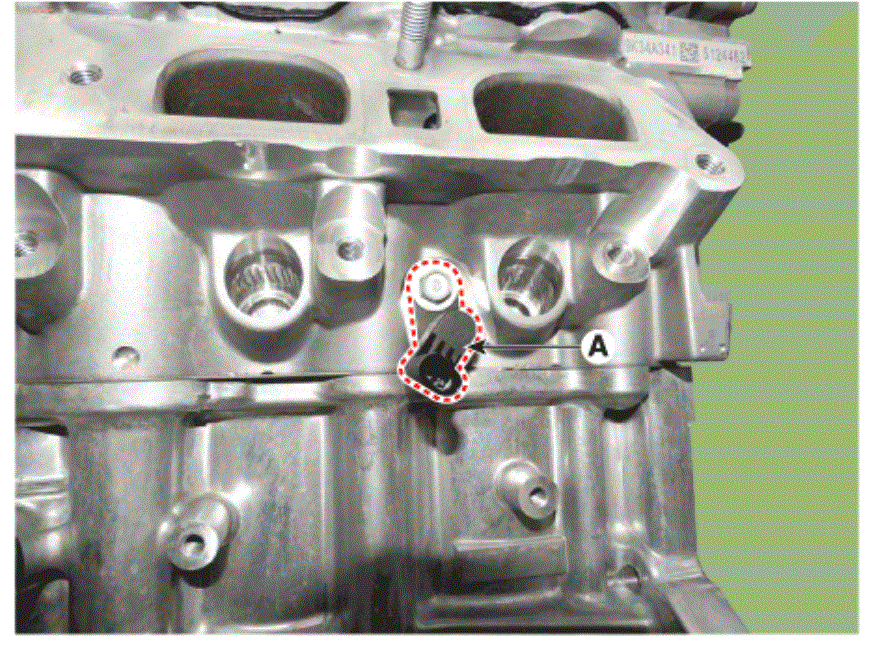

- Remove the ECTS (A) after loosening the mounting bolt.
