EGR Temperature Sensor
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift up the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

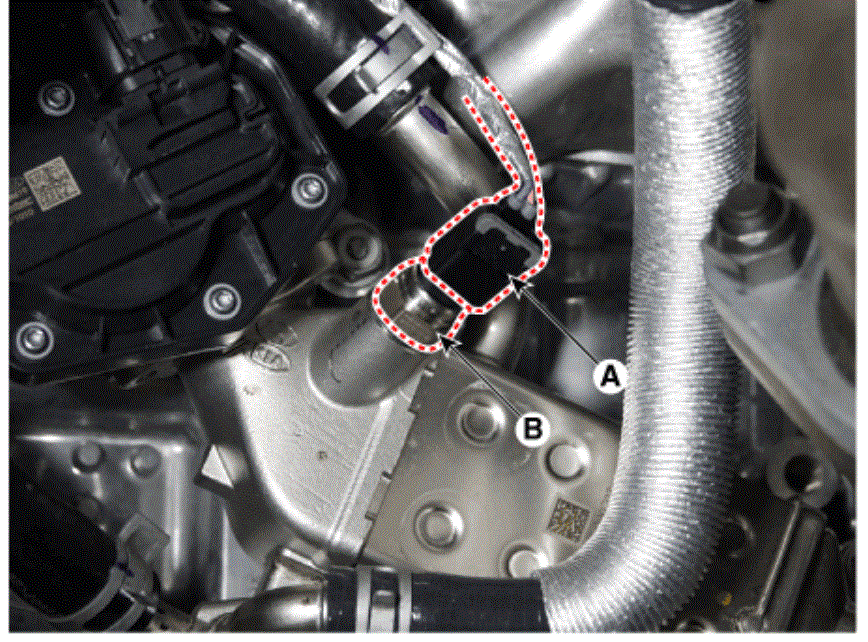

- Disconnect the gets connector (A).
- Remove the EGR temperature sensor (B).
Tightening torque:
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)
- Installation
CAUTION:
- Install the component to the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
- Install in the reverse order of removal.
