Repair Procedure: Installation
NOTE:
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
- Note that install the variable force solenoid (VFS) as below.

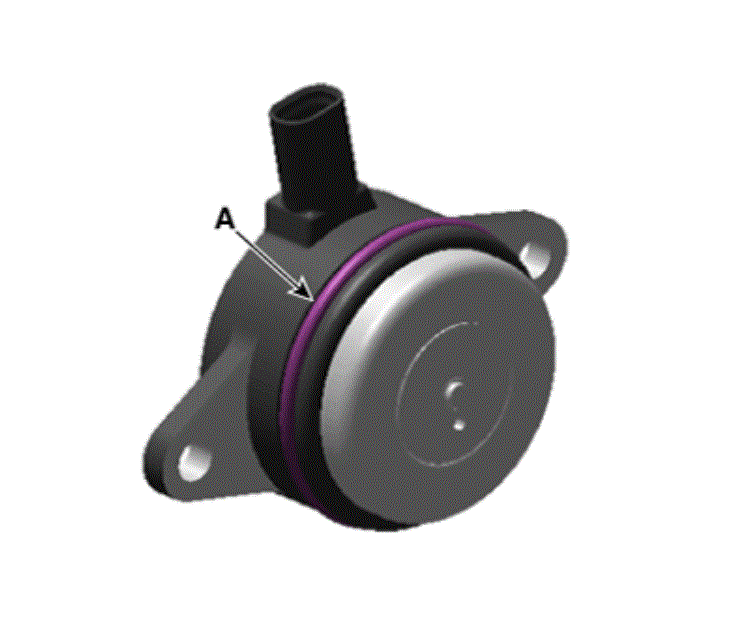

- After replacing the variable force solenoi valve (VFS) O-ring (A), apply the engine oil on the new O-ring.
- Tighten the variable force solenoid valve (VFS) all the way to the timing chain cover mounting surface, and then temporary tighten the bolts.
- Install the variable force solenoid with the specified torques.
- After replacing the variable force solenoi valve (VFS) O-ring (A), apply the engine oil on the new O-ring.
- Install in the reverse order of removal.
