Repair Procedures: Inspection
- Using the diagnostic tool, check the input/output speed sensor waveforms.
- Connect VCI data cable to self-diagnosis connector located at the bottom part of driver seat crash pad.
- Start the engine and turn on VCI.
- Select the name of vehicle type from diagnostic tool equipment screen.

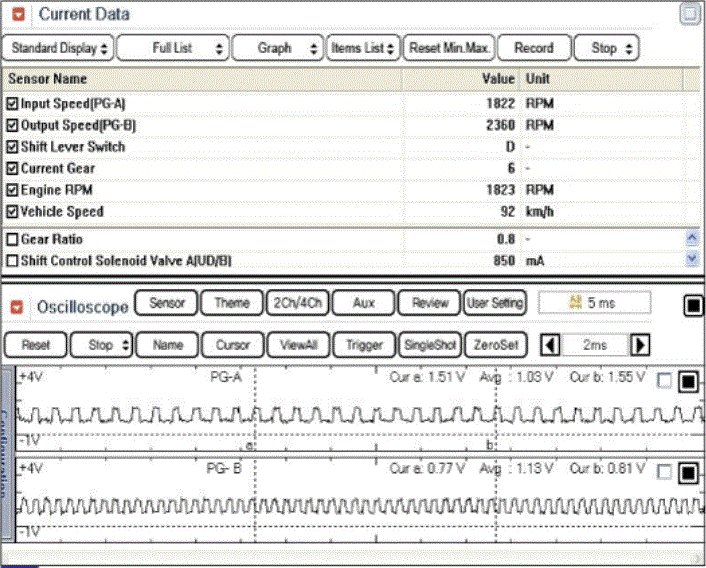

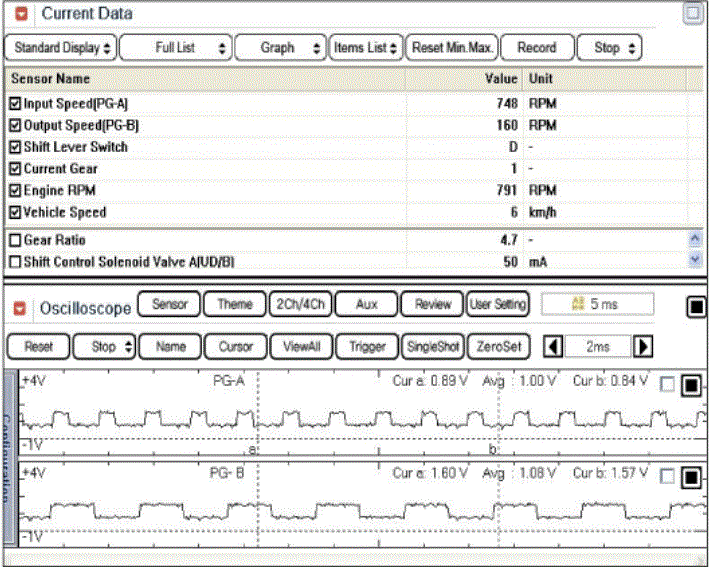

- Check the input/output speed sensor waveforms at high speed and low speed.
