SBW Control Unit Diagnosis (PHEV)
>>
DTC U0121-83: Lost Communication With Anti-Lock Brake System (ABS) Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

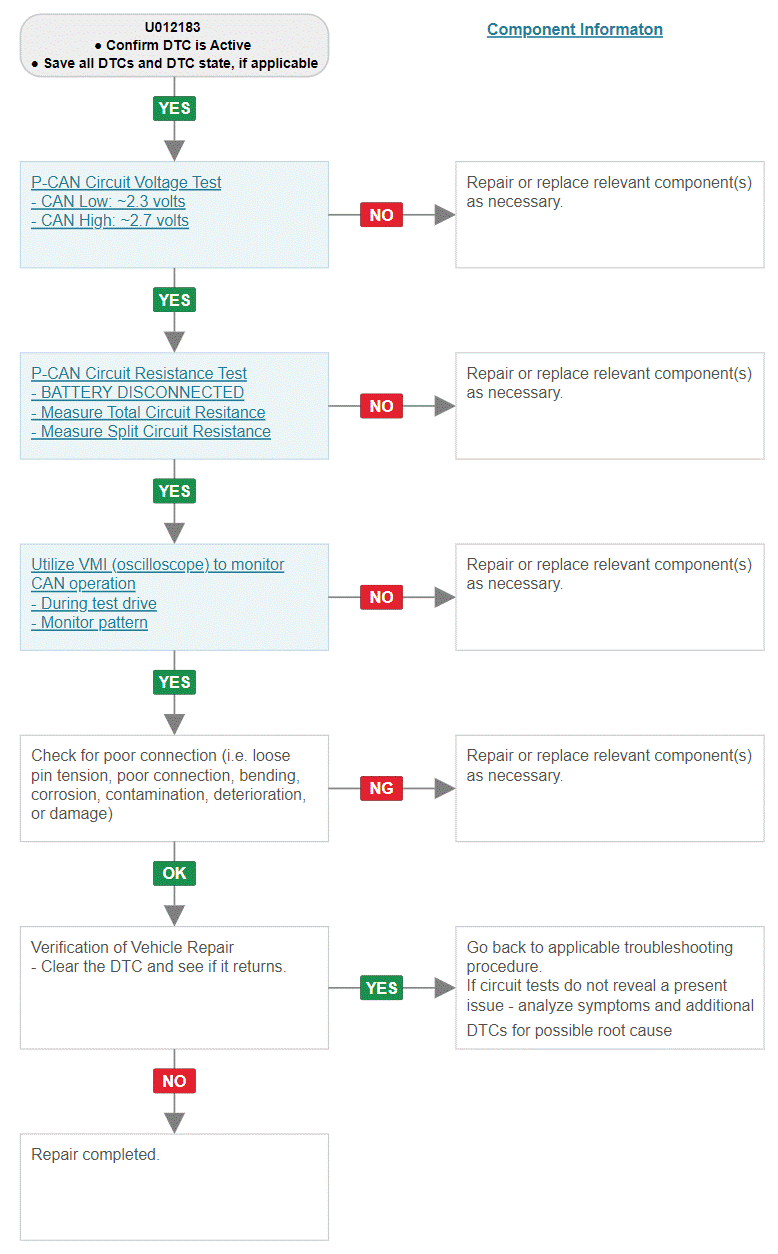

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
