Active Purge Pump Sensor [Front]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

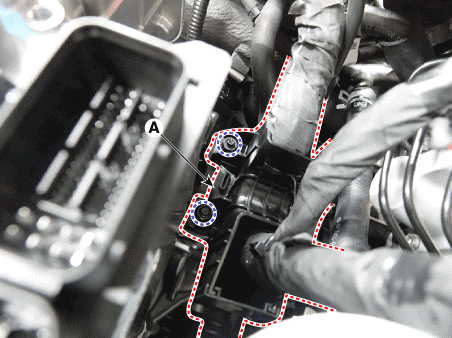

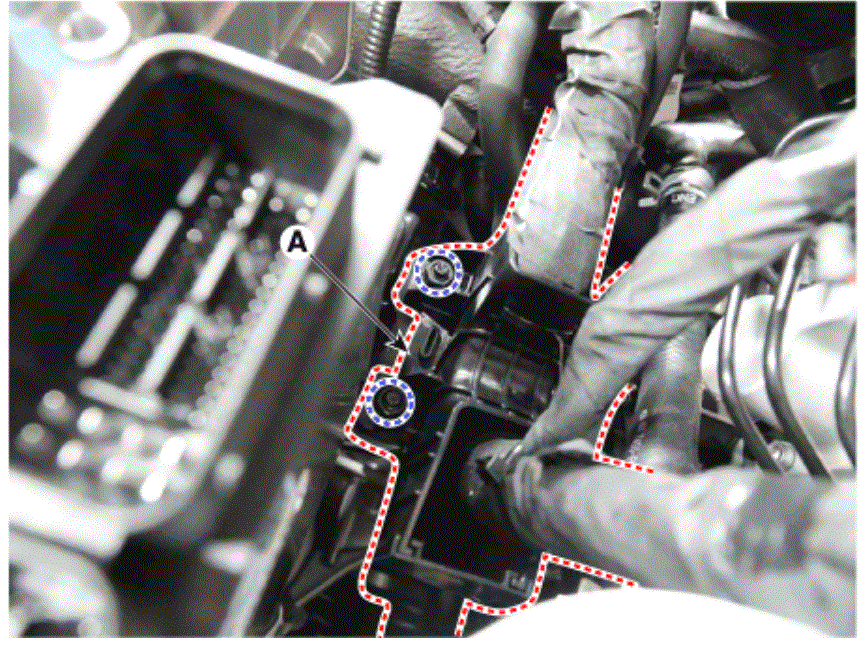

- Separate the wiring protector (A) after loosening the mounting nuts.
Tightening torque:
8.9 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)

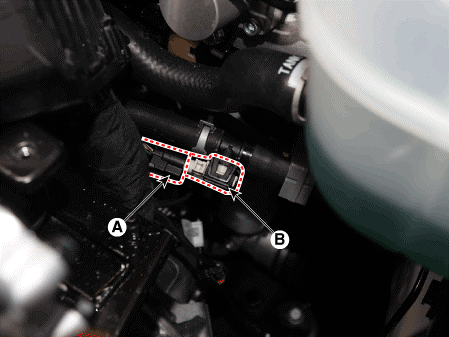

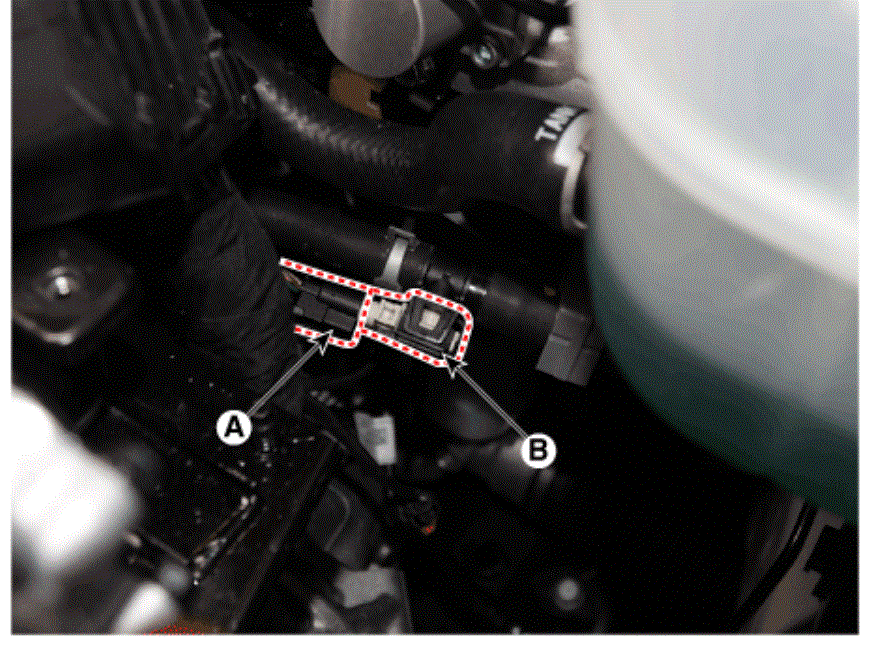

- Disconnect the front active purge pump sensor connector (A).
- Release the fixing hook and then remove the active purge pump sensor (B).
