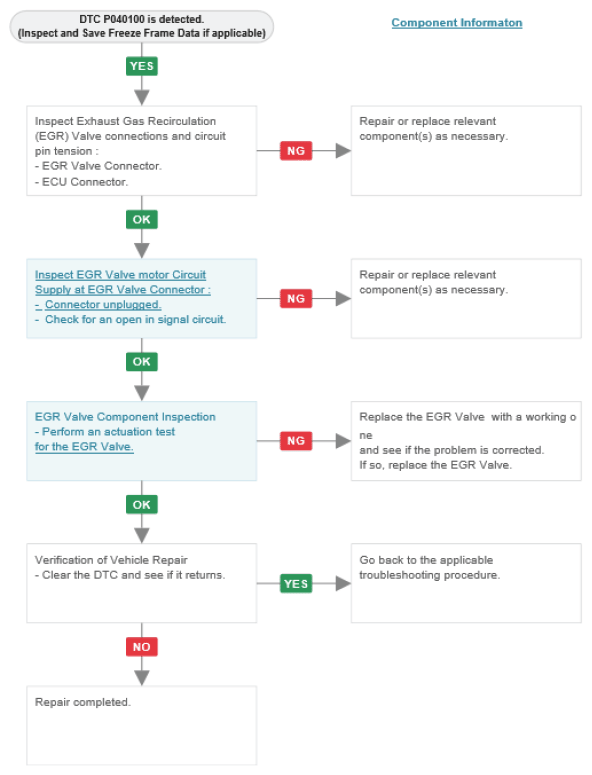

Diagnostic Flowchart
 Courtesy of HYUNDAI MOTOR AMERICA
|
CAUTION:
The learnt value must be reset after replacing the EGR valve. Otherwise, problems regarding performance and exhaust may occur until the automatic learning takes place after component replacement.
