Components Location

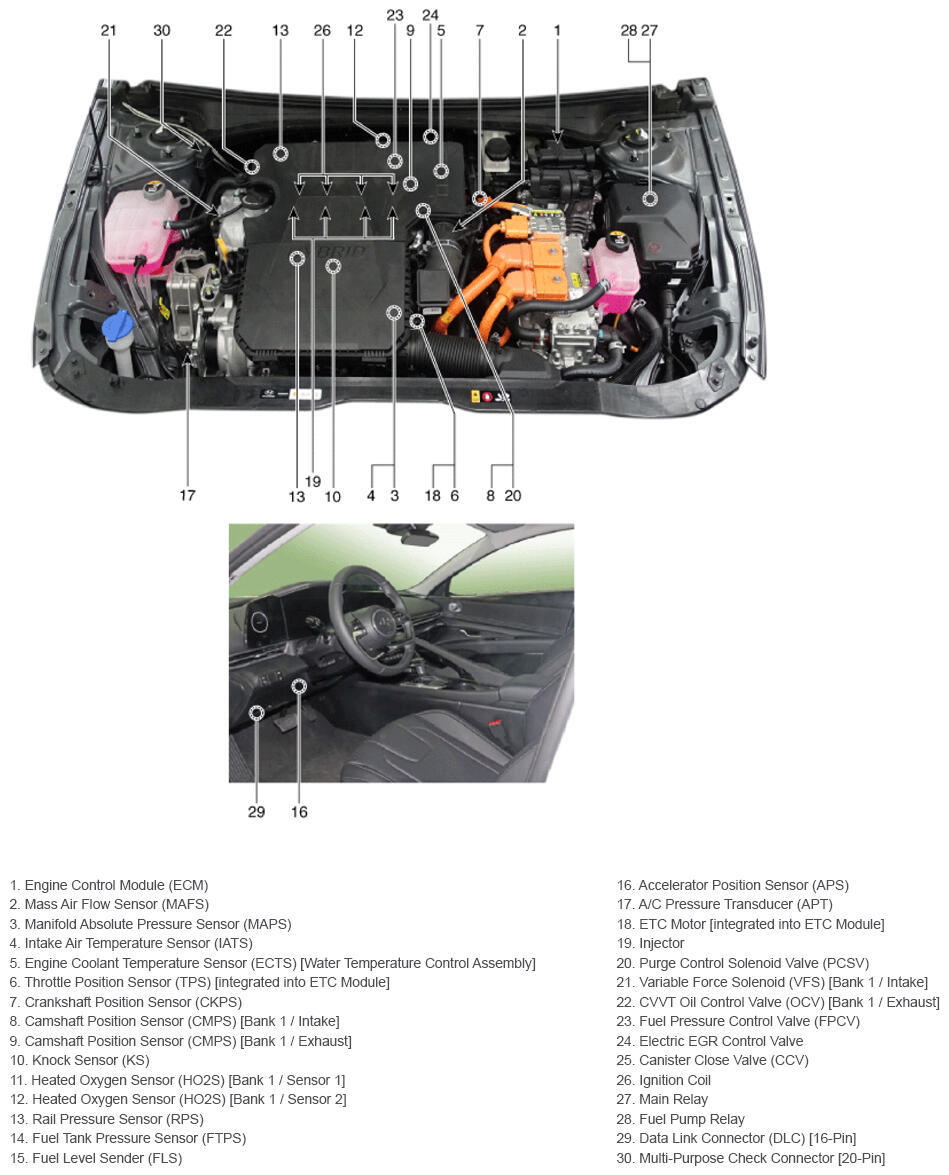

G16748943Courtesy of HYUNDAI MOTOR AMERICA

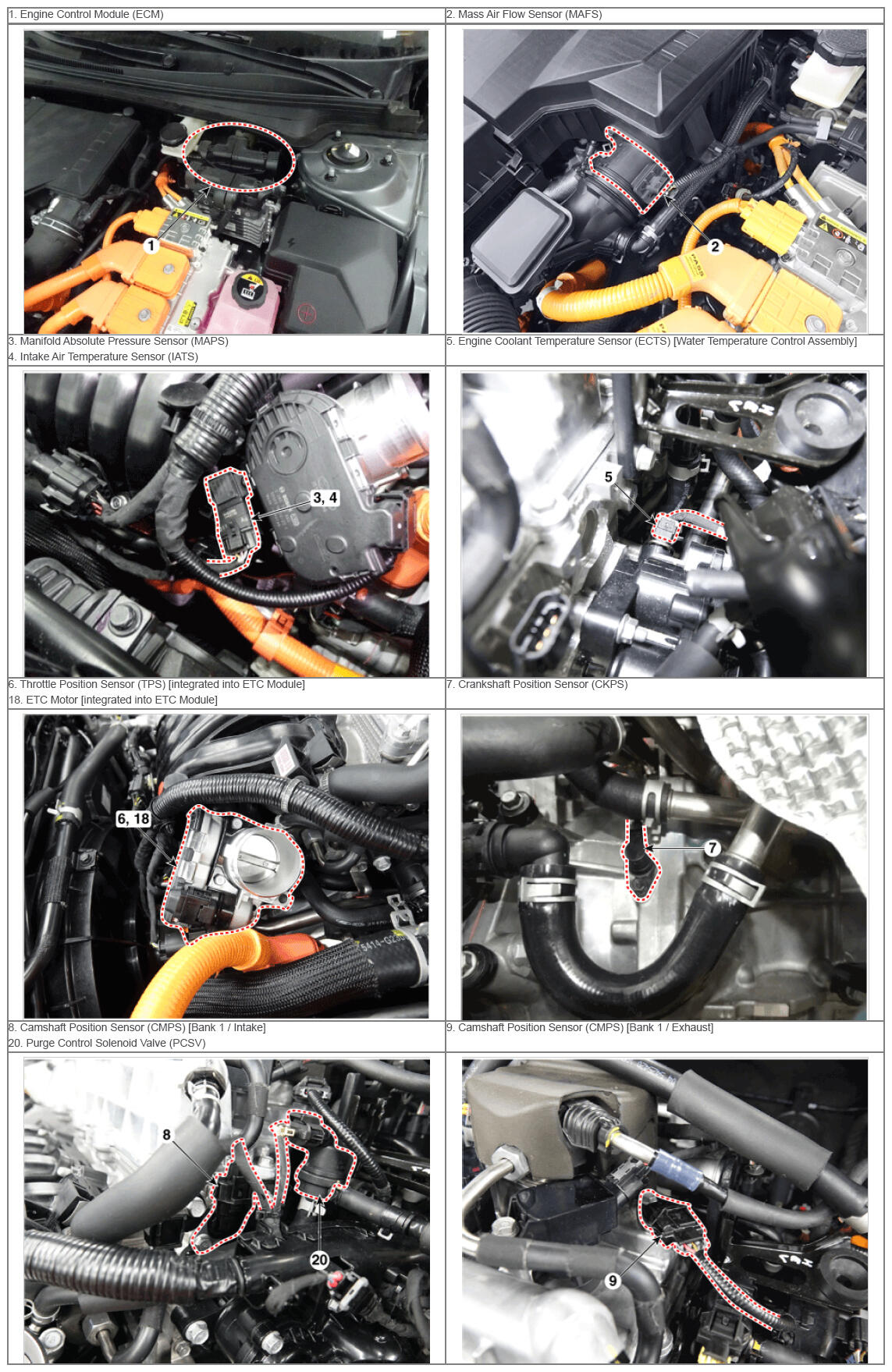

G16748944Courtesy of HYUNDAI MOTOR AMERICA

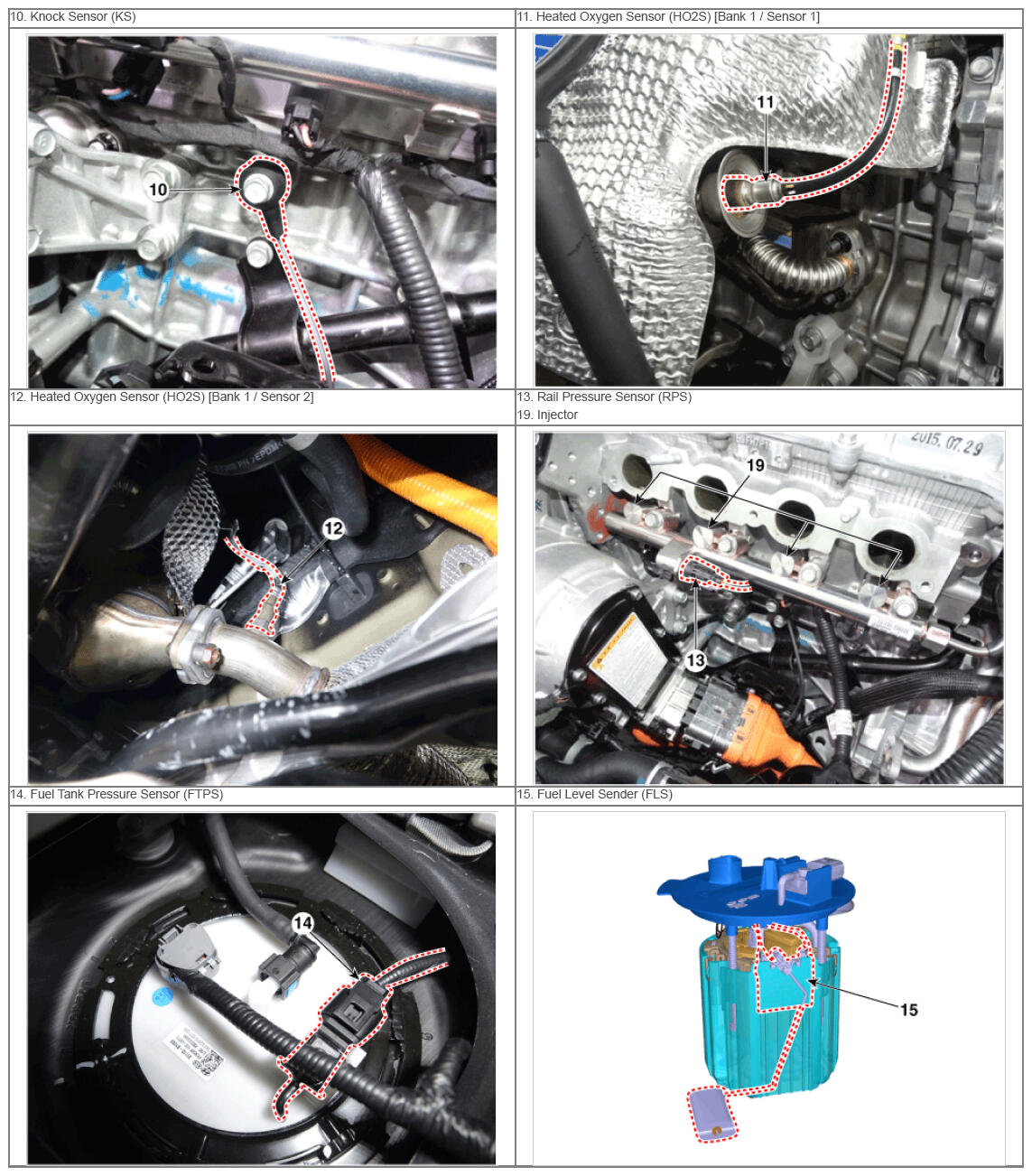

G16748945Courtesy of HYUNDAI MOTOR AMERICA

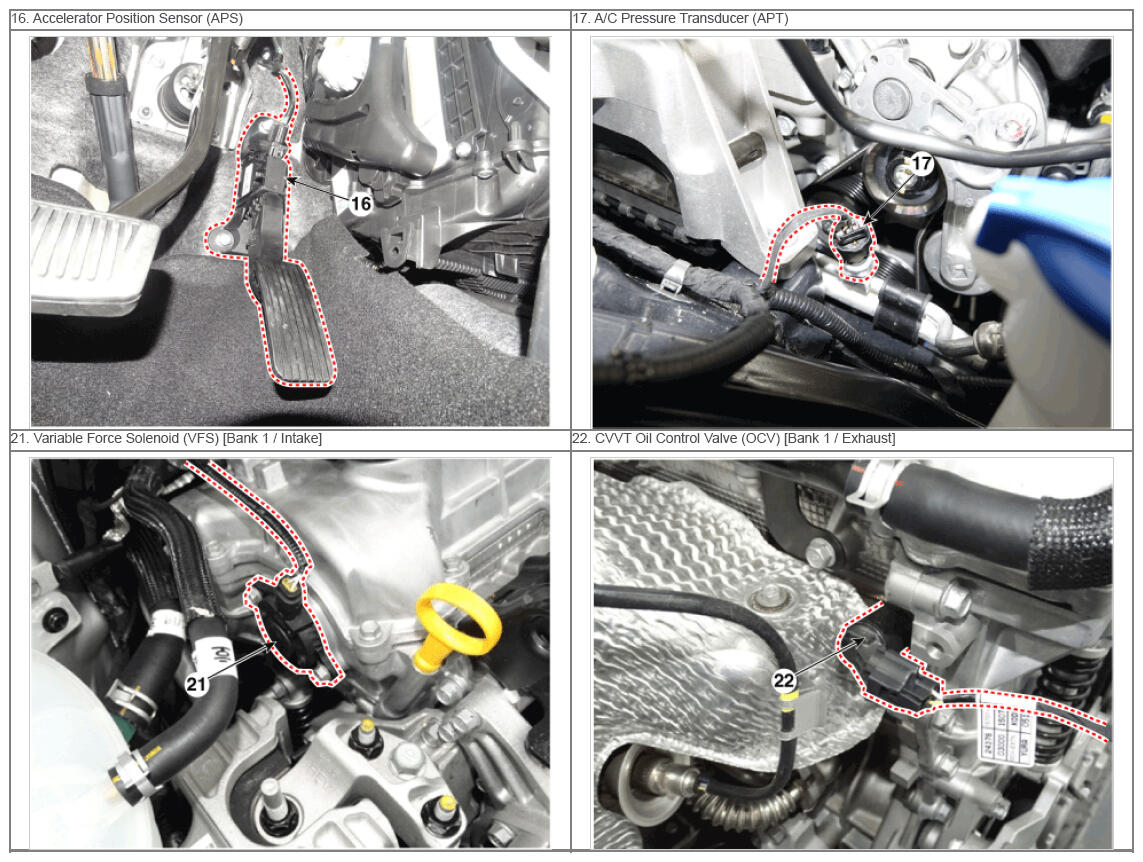

G16748946Courtesy of HYUNDAI MOTOR AMERICA

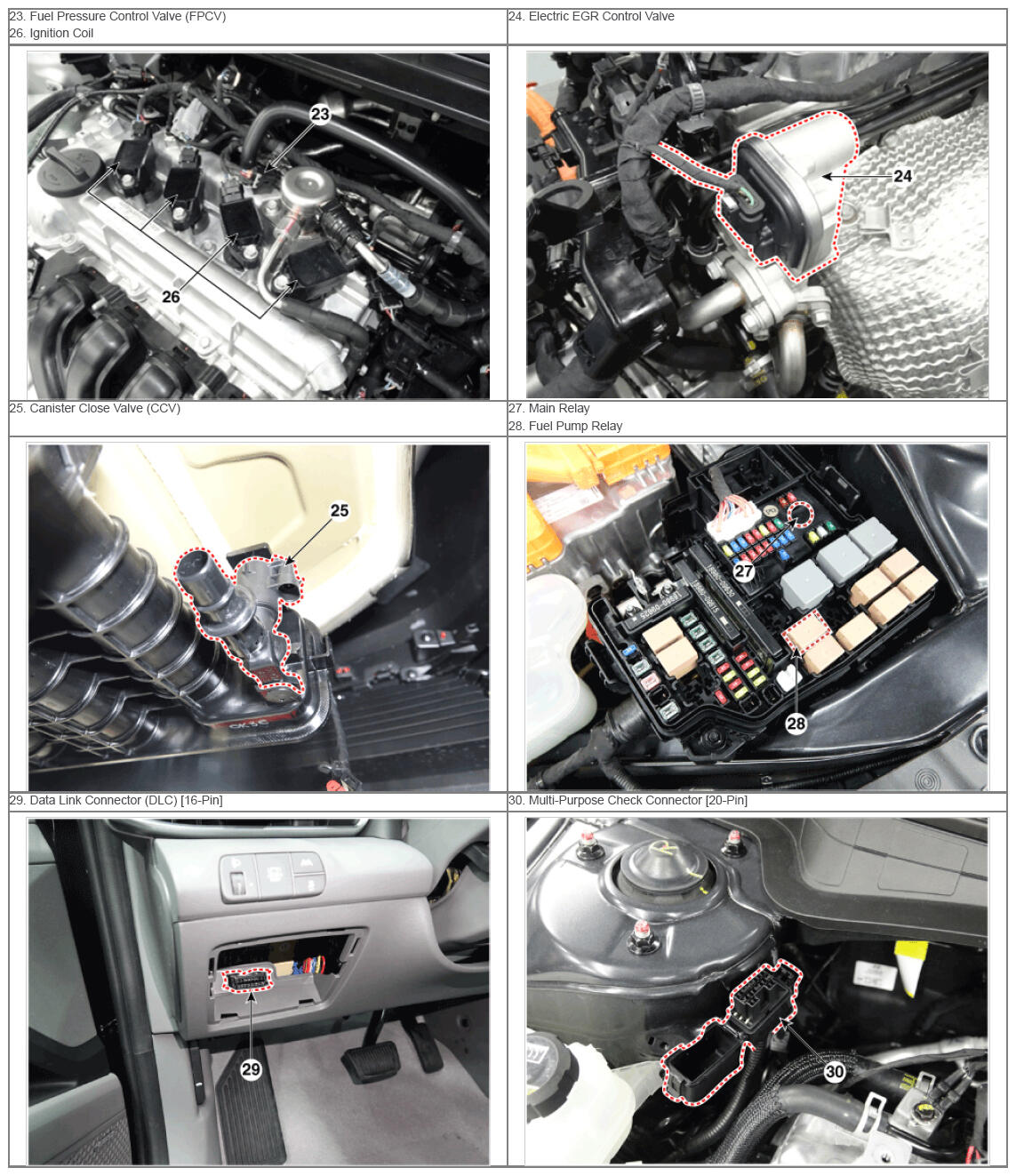

G16748947Courtesy of HYUNDAI MOTOR AMERICA
