Repair Procedures: Removal

Disconnect the battery (-) terminal.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

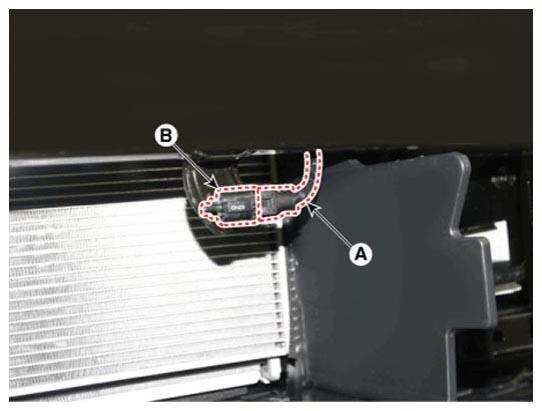

Disconnect the connector (A), and then remove the ambient temperature sensor (B).

G16772025

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
