Components Location

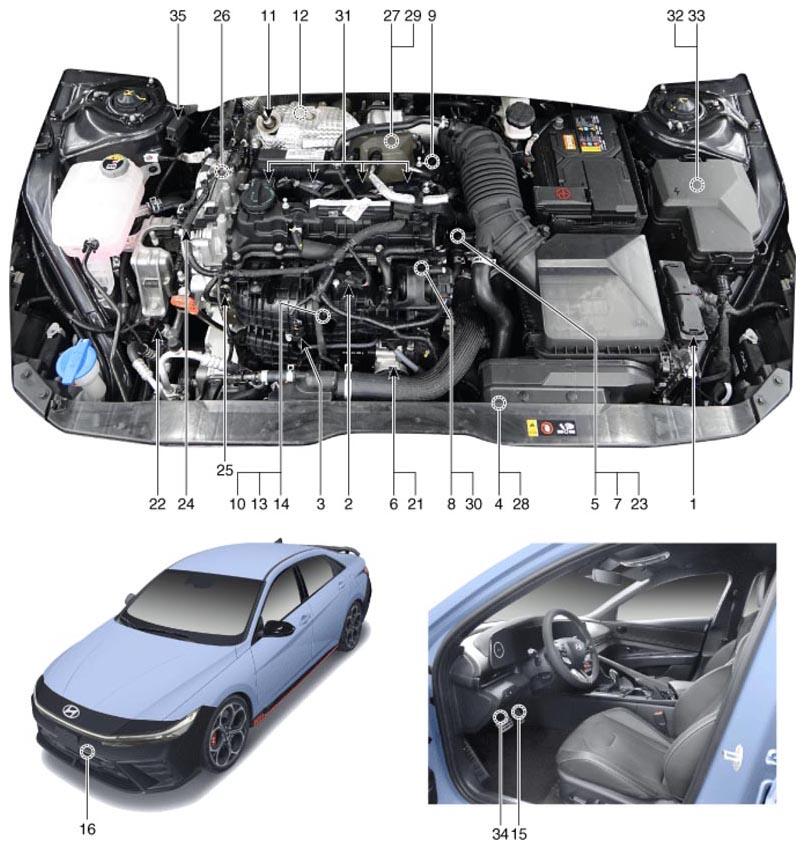

G16771990Courtesy of HYUNDAI MOTOR AMERICA

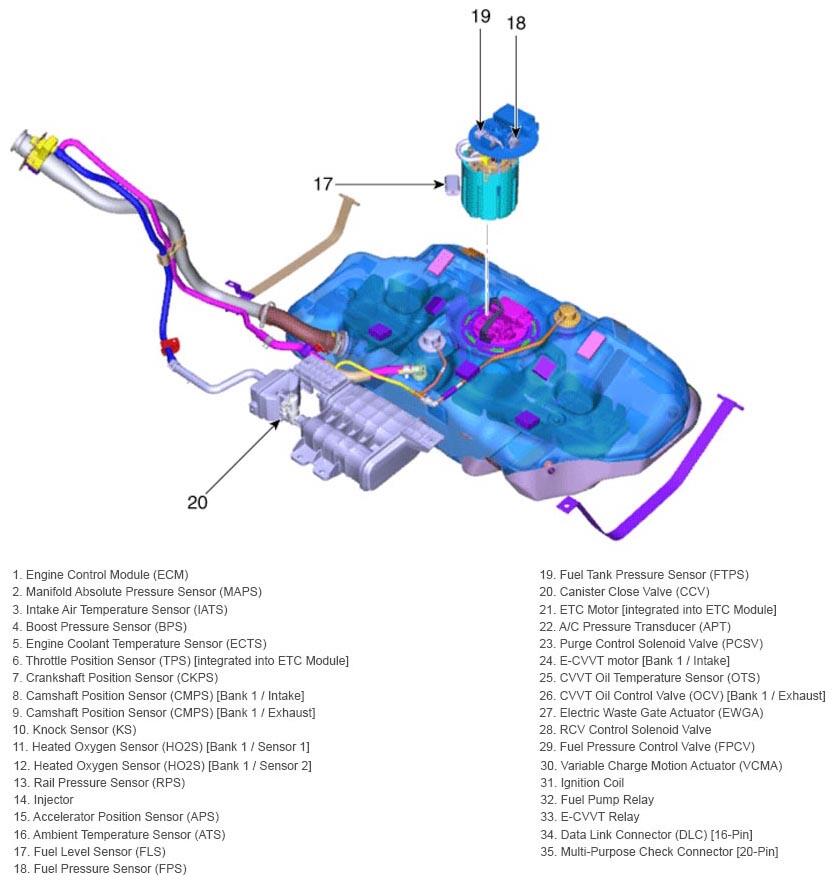

G16771991Courtesy of HYUNDAI MOTOR AMERICA

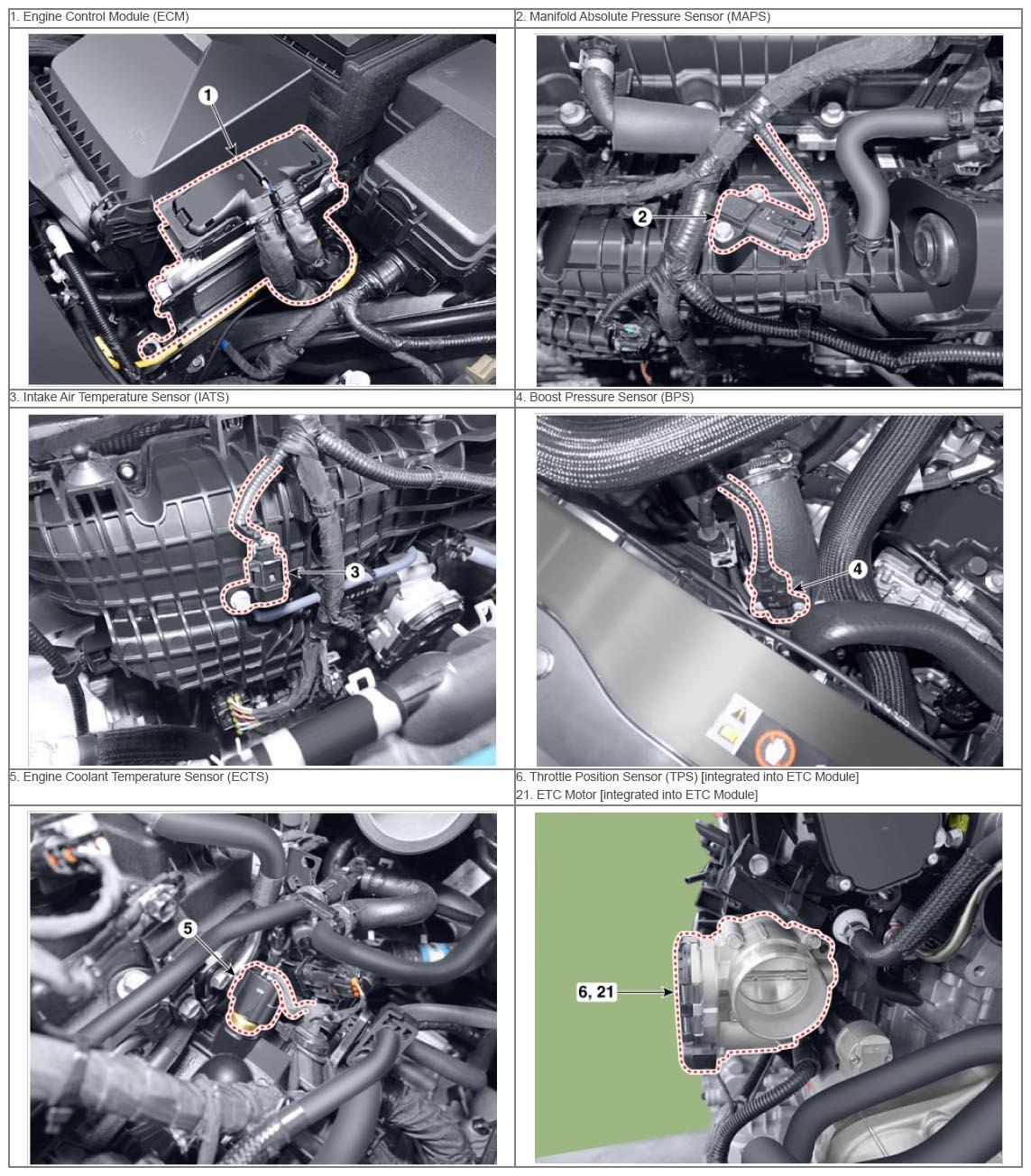

G16771992Courtesy of HYUNDAI MOTOR AMERICA

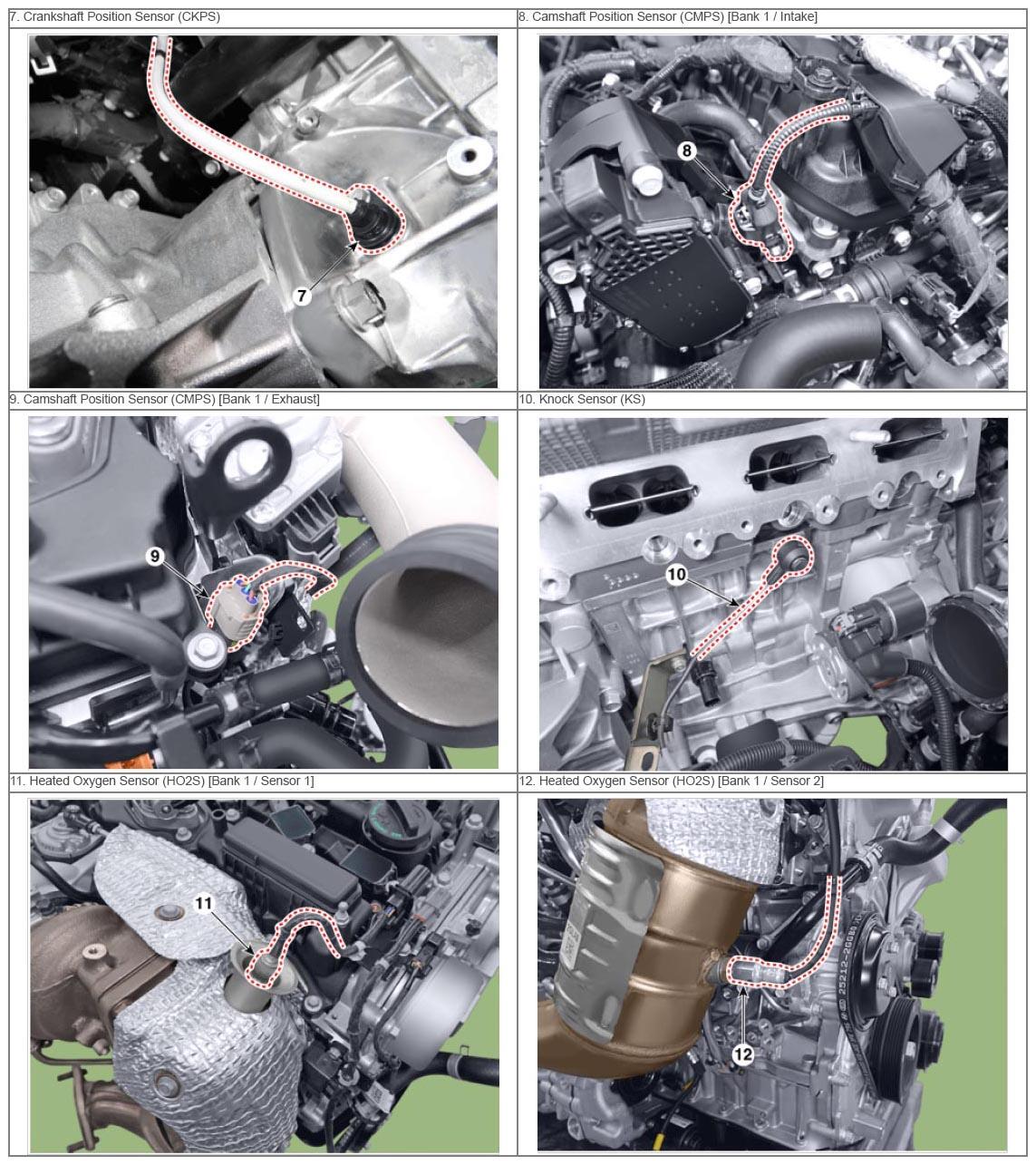

G16771993Courtesy of HYUNDAI MOTOR AMERICA

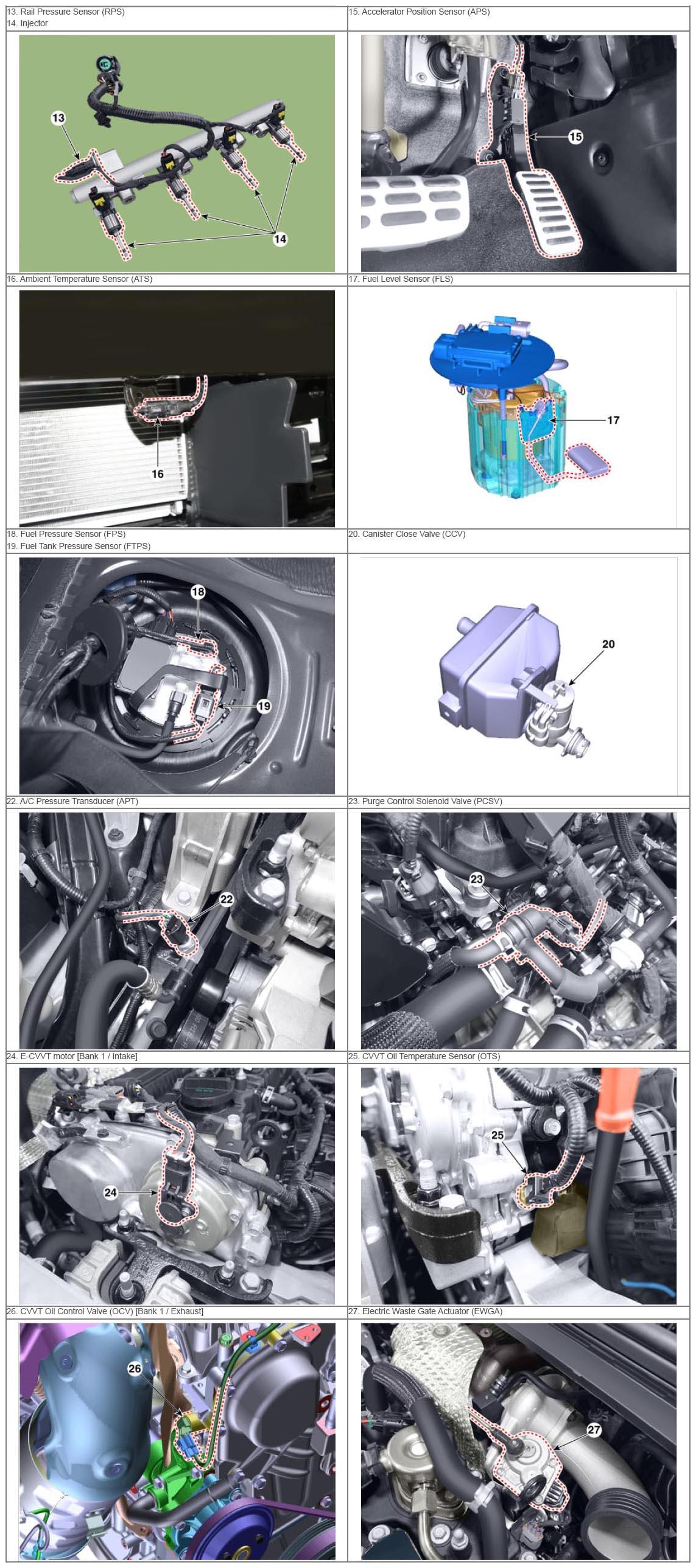

G16771994Courtesy of HYUNDAI MOTOR AMERICA

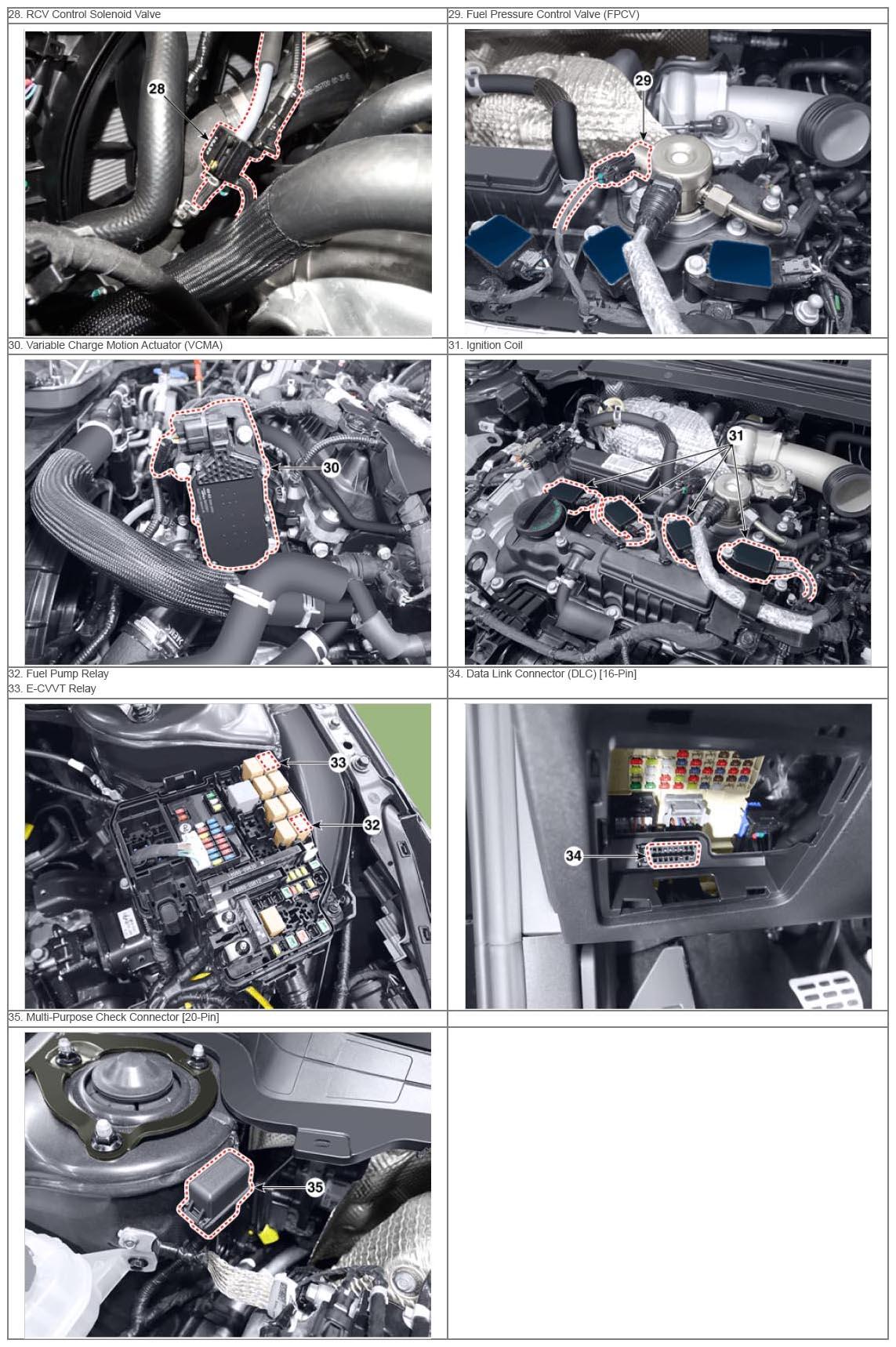

G16771995Courtesy of HYUNDAI MOTOR AMERICA
