Repair Procedures: Removal

Disconnect the battery (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

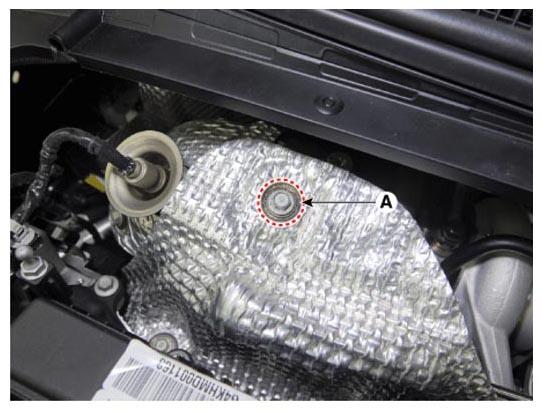

Remove the exhaust manifold heat protector installation blot (A).

Courtesy of HYUNDAI MOTOR AMERICA

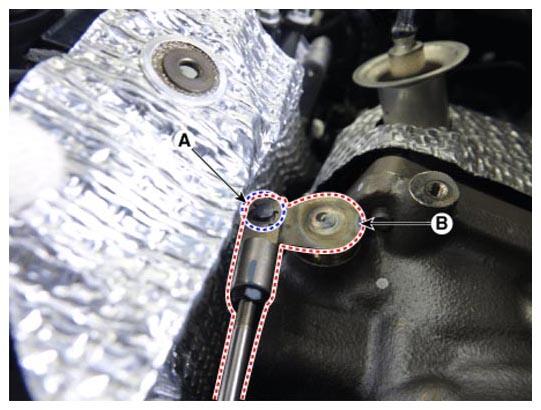

Remove the shaft link assembly (B) after removing the C-ring (A).

Courtesy of HYUNDAI MOTOR AMERICA

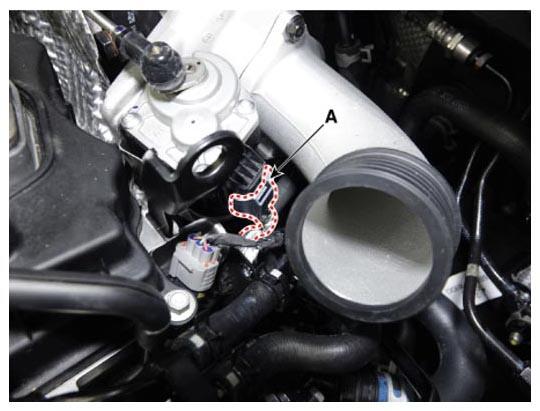

Disconnect the EWGA connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

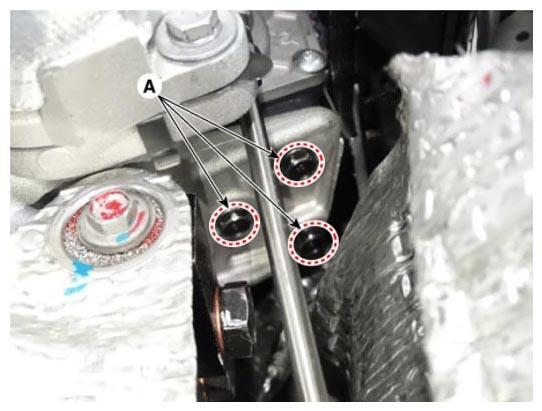

Remove the EWGA after removing the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

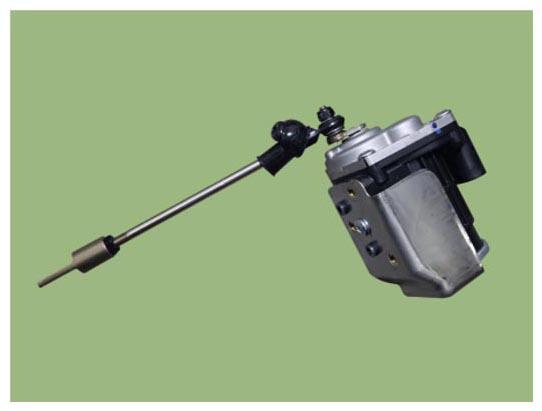

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When replacing the Electric WGT Control Actuator, perform the rod adjustment procedure.
When install the electric WGT control actuator, do not reuse a C-Ring.
