Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

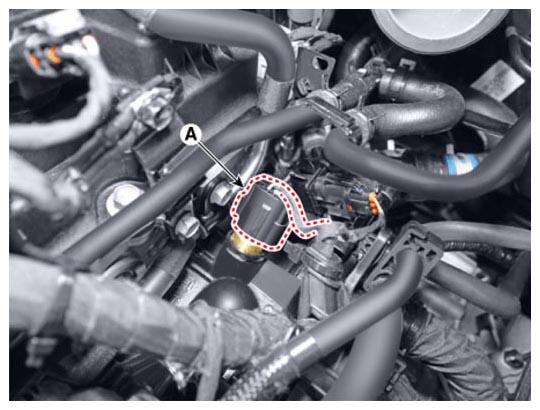

- Remove the ECTS, after disconnect the engine coolant temperature sensor connector (A).CAUTION:
- Note that engine coolant may flow out from the water temperature control assembly when removing the sensor.
- Supplement the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
CAUTION:- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
