Intake Air Temperature Sensor

Disconnect the battery (-) terminal.

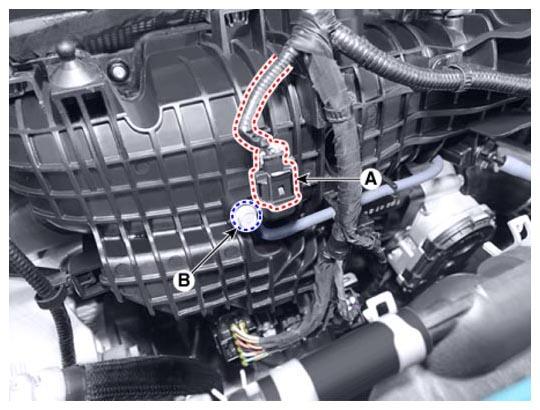

Disconnect the IATS connector (A).
Remove the installation bolt (B), and then remove the sensor from the surge tank.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
