Repair Procedures: Removal

Disconnect the battery (-) terminal.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:
- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

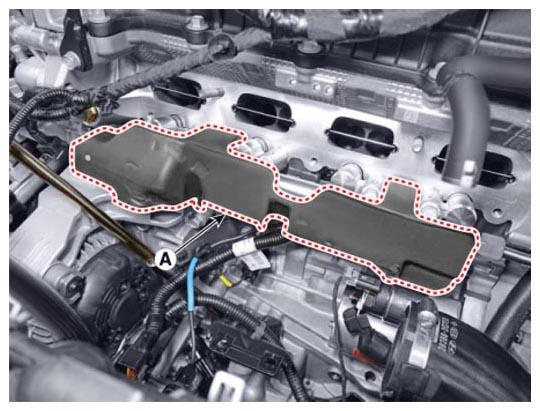

Remove the delivery pipe foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

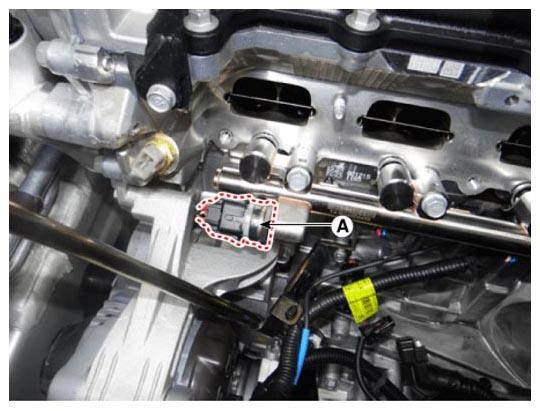

Disconnect the rail pressure sensor connector and then remove the sensor (A) from the delivery pipe.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
