Charging System: Alternator: Specifications: Specification

Item	Specification

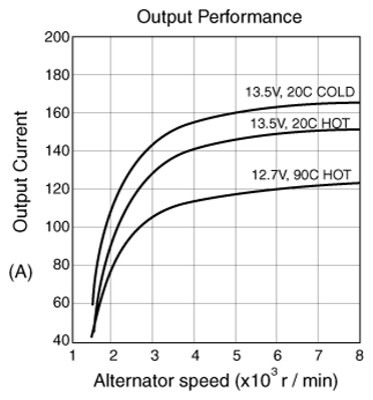

Nominal output	13.5V, 150A
Speed in use	0 - 18, 000 rpm
Pin	3 pin (C, L, FR)
Pulley type	PCD
Voltage regulator	IC Regulator built in type
Regulator Setting Voltage	14.15 - 14.95V [25°C (77°F)]
