Repair Procedures: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")

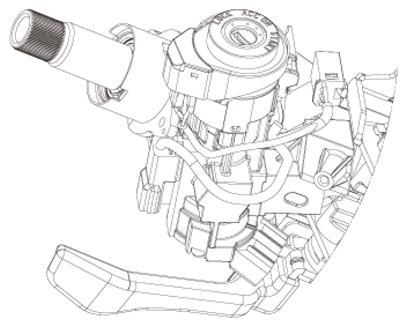

- Remove the steering column upper & Lower shroud.

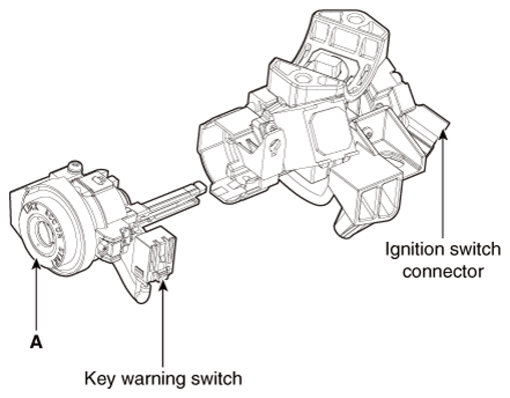

- Remove the ignition switch and disconnecting the Key Warning/immobilizer connector.

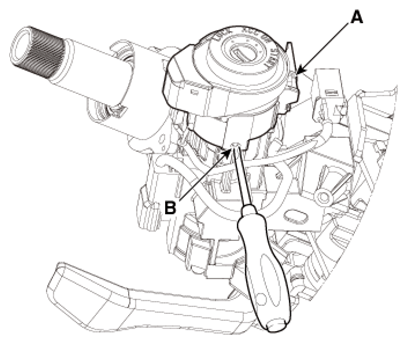

- If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.
- Installation is the reverse of removal procedure.
