Battery Sensor

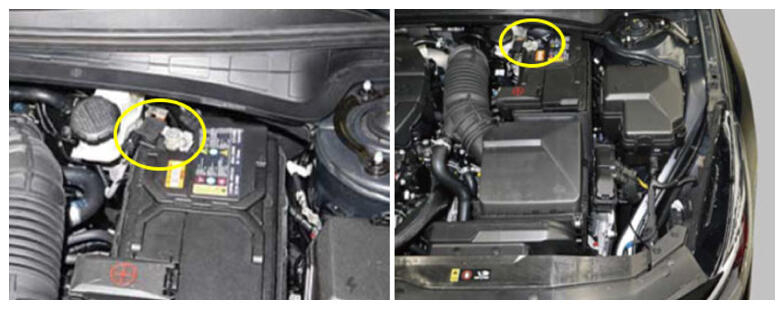

G16812349Courtesy of HYUNDAI MOTOR AMERICA

Battery sensor is connected to the (-) battery terminal. It sends battery voltage, current, temperature information to the Engine Control Module (ECM). Then, the ECM adjusts voltage by duty cycle based on these signals.
