DTC P0140-00: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
>>
Troubleshooting
>>

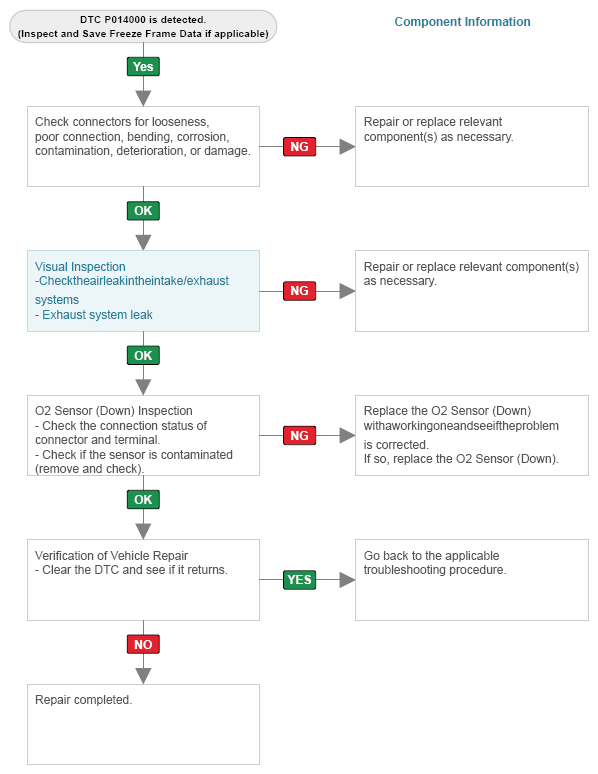

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
