[Variant Coding]

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the diagnostic tool.

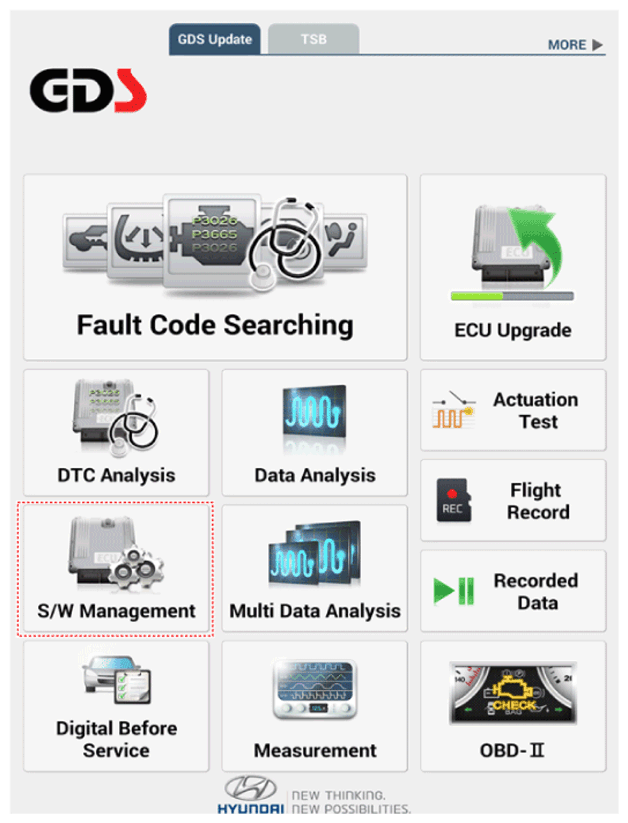

  2. Select the 'S/W Management' and 'Car model'.
    G16772944Courtesy of HYUNDAI MOTOR AMERICA

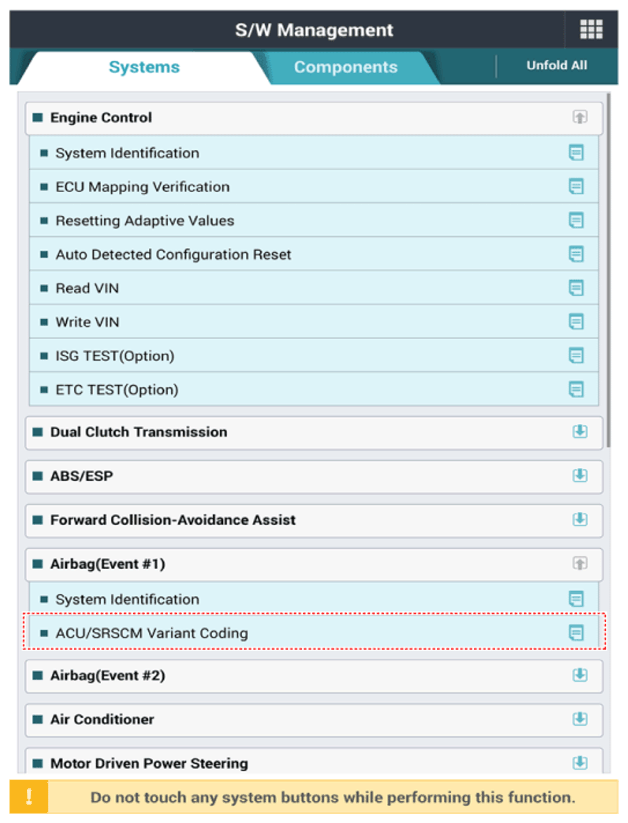

  3. Select "Airbag" and "ACU/SRSCM Variant Coding".
    G16772945Courtesy of HYUNDAI MOTOR AMERICA

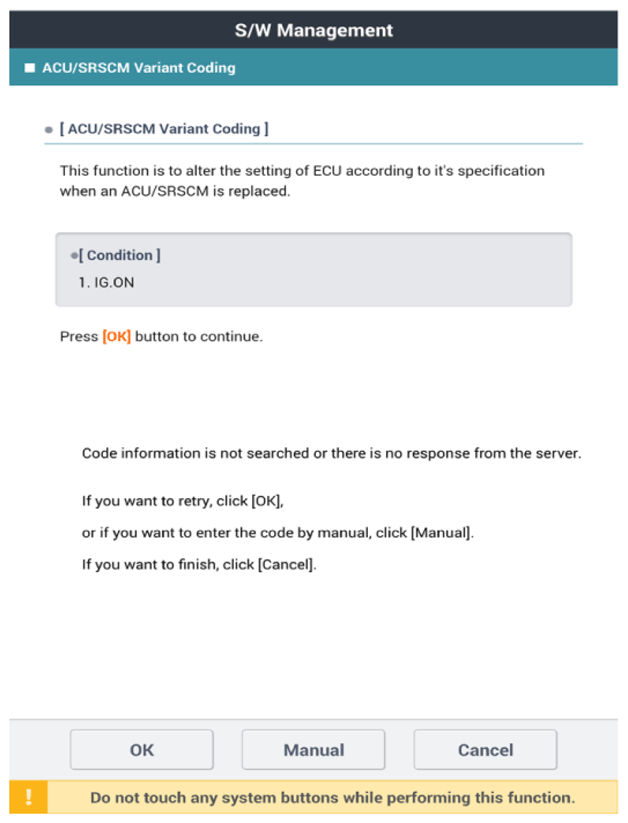

  4. Perform the "ACU/SRSCM Variant Coding" procedure according to the GDS screen message.
G16772946Courtesy of HYUNDAI MOTOR AMERICA
