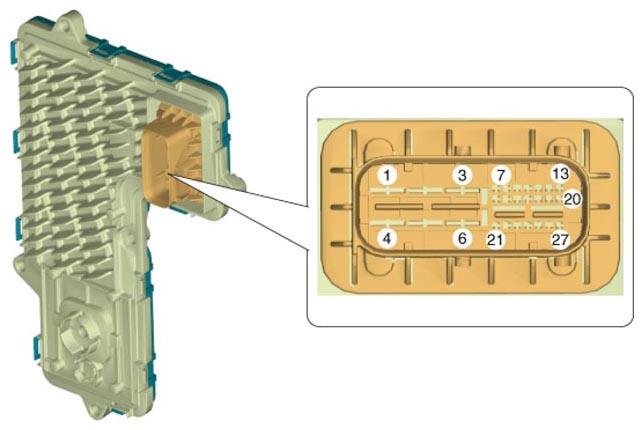

| 1 |
High pressure oil pump motor V for control |
15 |
- |
| 2 |
Ground 1 |
16 |
- |
| 3 |
Ground 2 |
17 |
PT-Local 1 Low (CAN) |
| 4 |
High pressure oil pump motor U for control |
18 |
PT-Local 1 High (CAN) |
| 5 |
High pressure oil pump motor W for control |
19 |
P-CAN Low |
| 6 |
Battery voltage |
20 |
P-CAN High |
| 7 |
Position switch power_5 V (In case by SBC) |
21 |
- |
| 8 |
Position switch power signal 1 (In case by SBC) |
22 |
- |
| 9 |
Position switch power signal 2 (In case by SBC) |
23 |
Position switch ground (In case by SBC) |
| 10 |
Paddle shift down |
24 |
Local-DCT 1 High (CAN) |
| 11 |
Paddle shift up |
25 |
Local-DCT 1 Low (CAN) |
| 12 |
- |
26 |
- |
| 13 |
IG.1 |
27 |
- |
| 14 |
- |
|
|
