Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

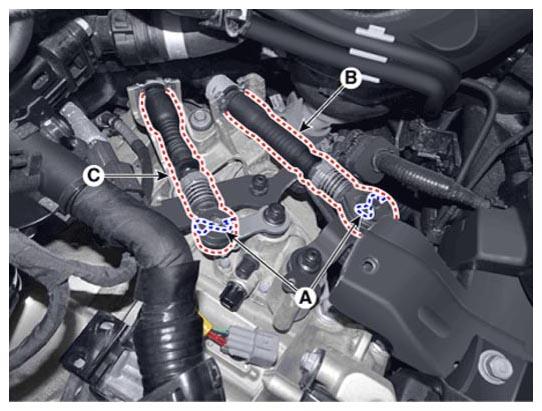

  5. Remove the snap pin (A) and then disconnect the shift cable (B) and the select cable (C) from the bracket.
    G16772358Courtesy of HYUNDAI MOTOR AMERICA

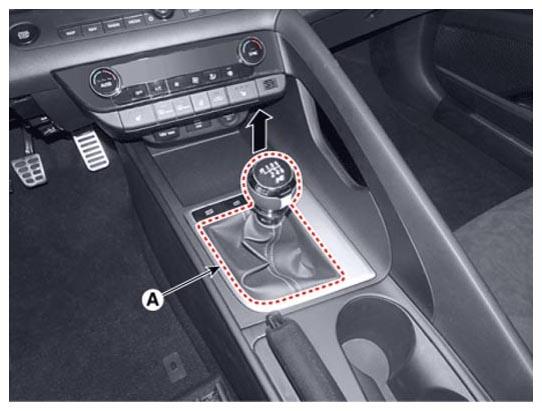

  6. Remove the shift lever knob & boots (A).
    G16772359Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ")

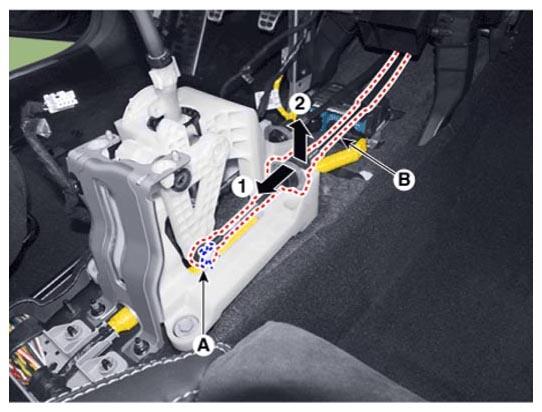

  8. Remove the snap pin (A) and then disconncet the select cable (B).
    G16772360Courtesy of HYUNDAI MOTOR AMERICA

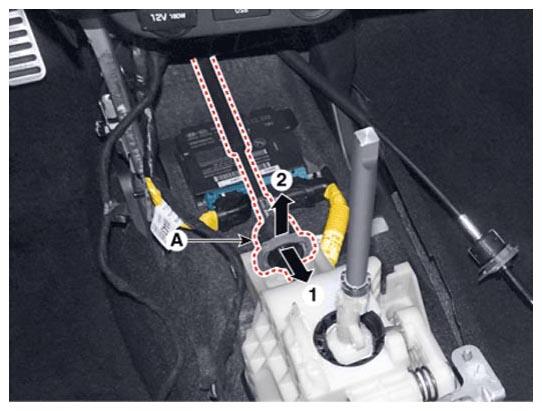

  9. Disconnect the shift cable socket (A).
    G16772361Courtesy of HYUNDAI MOTOR AMERICA

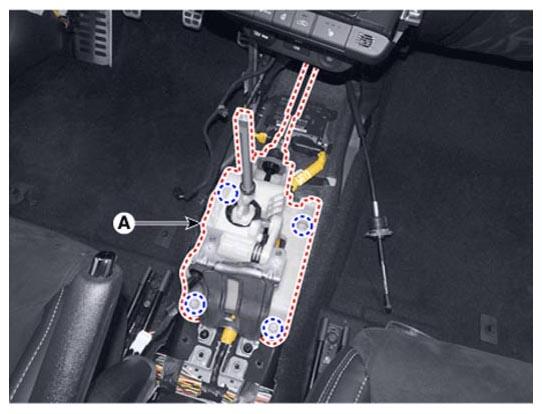

  10. Loosen the bolts and then disconnect the shift lever assembly (A).
    G16772362Courtesy of HYUNDAI MOTOR AMERICA

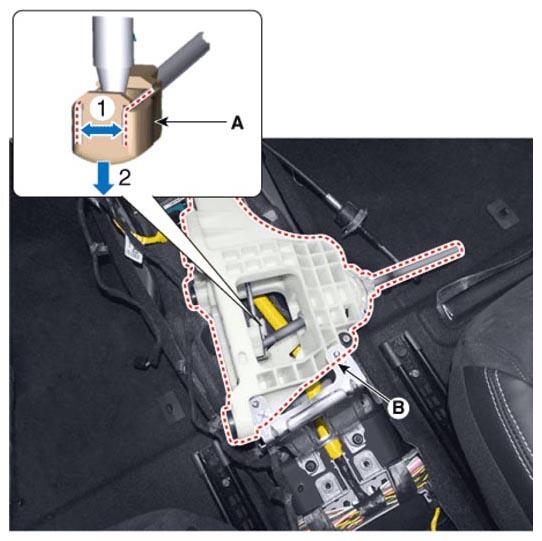

  11. Disconnect the shift cable (A) and shift lever (B) by spreading the cable end's "U" shaped clips towards both sides.
    G16772363Courtesy of HYUNDAI MOTOR AMERICA

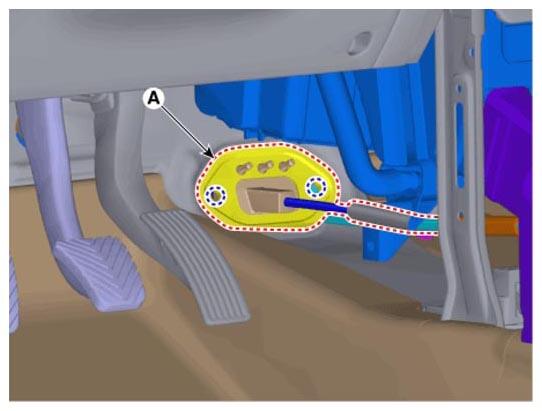

  12. Loosen the nuts and then remove the retainer (A).
    G16772364Courtesy of HYUNDAI MOTOR AMERICA

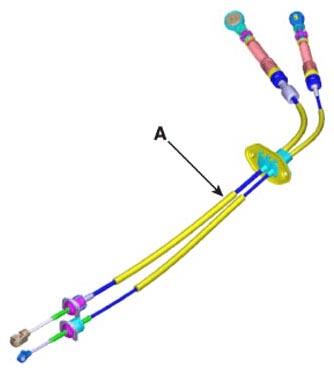

  13. Remove the control cable (A) to the interior.
    G16772365Courtesy of HYUNDAI MOTOR AMERICA
