Button Start System: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the crash pad center panel.
(Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

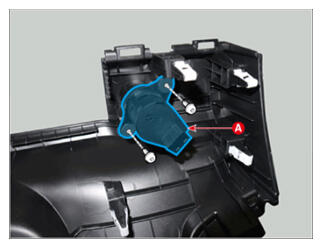

- Remove the SSB (A), after removing the screws.
