Smart Key Buzzer
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the front bumper assembly.
(Refer to Front & Rear Bumper - "FRONT BUMPER ASSEMBLY ")

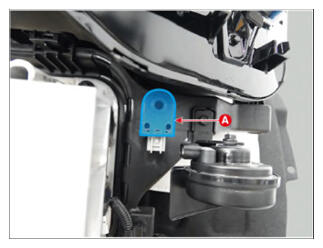

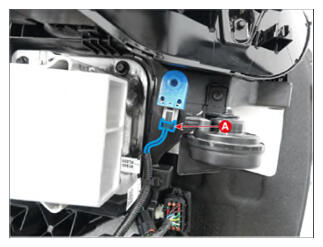

- Disconnect the smart key buzzer connector (A).
- Remove the smart key buzzer (A).
