Smart Key Code Saving
- Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat and turn the power on diagnostic tool.

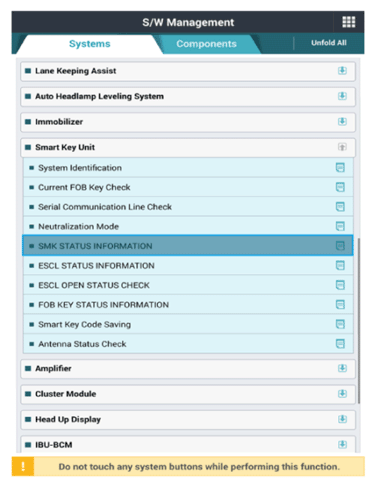

- Select the 'S/W Management' and 'Car model'.
- Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
- Prepare the smart key to be registered and press the "OK".
- Enter the Pin Code for registration and follow the instructions on the screen.
- Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
