Removal And Installation
- Disconnect the battery negative (-) terminal.

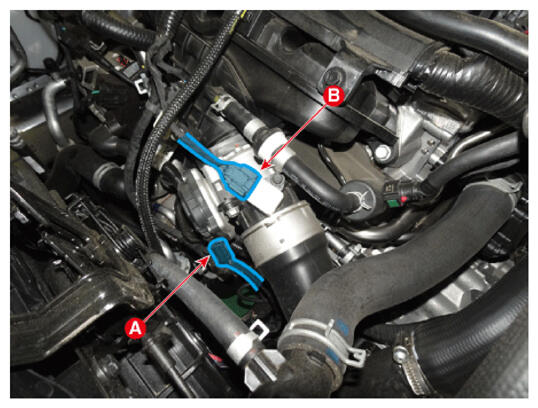

- Disconnect the ETC module connector (A) and boost pressure sensor connector (B).
- Remove the intercooler outlet hose.
(Refer to Engine Mechanical System - "INTERCOOLER ")

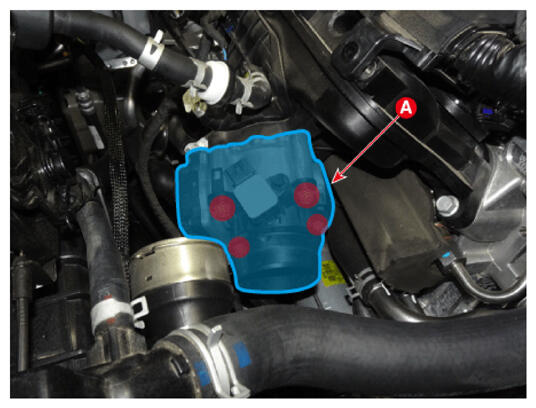

- Remove the Electronic Throttle Control (ETC) module (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
- Install in the reverse order of removal.
