Engine Control Module (ECM): Removal

Disconnect the battery negative (-) terminal.

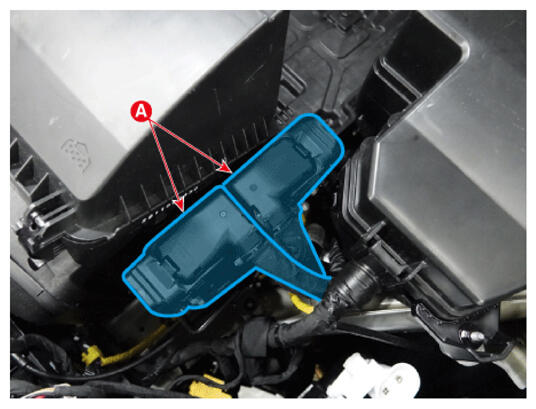

Disconnect the Engine Control Module (ECM) connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

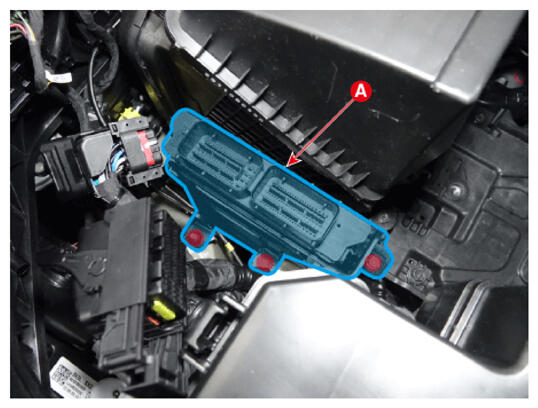

Remove the Engine Control Module (ECM) (A) after removing the bolts and nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

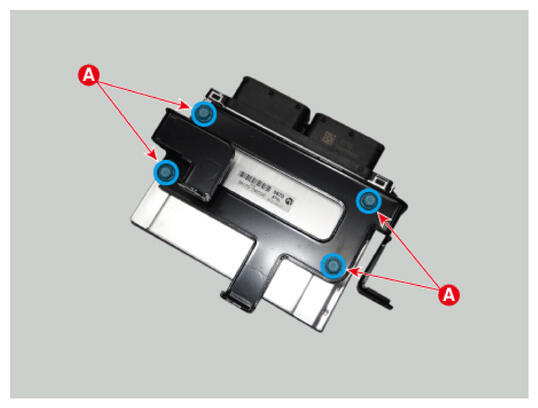

Remove the Engine Control Module (ECM) from the bracket after removing the bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
