Engine Control System - 1.6: Injector: Installation

1. Install in the reverse order of removal.

NOTE:

• Do not reuse the used bolt.
• Do not reuse the used injector fixing clip.
• Do not reuse the high pressure fuel pipe.

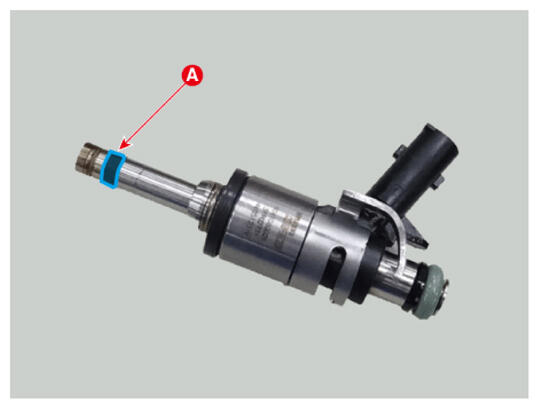

• Do not reuse the combustion seal (A).

  Courtesy of HYUNDAI MOTOR AMERICA

• Be careful not to apply oil to combustion seal.

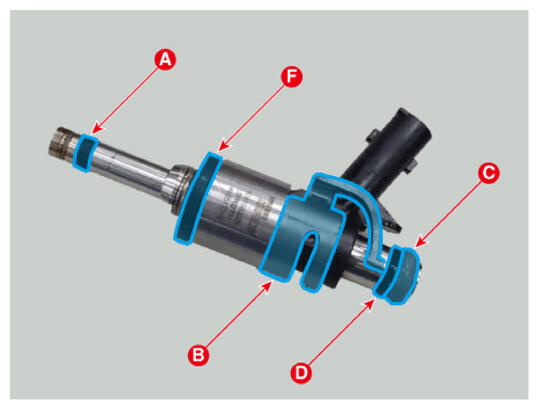

• Do not reuse the combustion seal (A), injector clip (B), O-ring (C), support disk (D), rubber washer (F).

Courtesy of HYUNDAI MOTOR AMERICA

• When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
• Apply the engine oil to the injector O-ring.
• When inserting the injector, be careful not to damage the injector tip.
