Engine Control System - 1.6
>>
Rail Pressure Sensor (RPS)
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

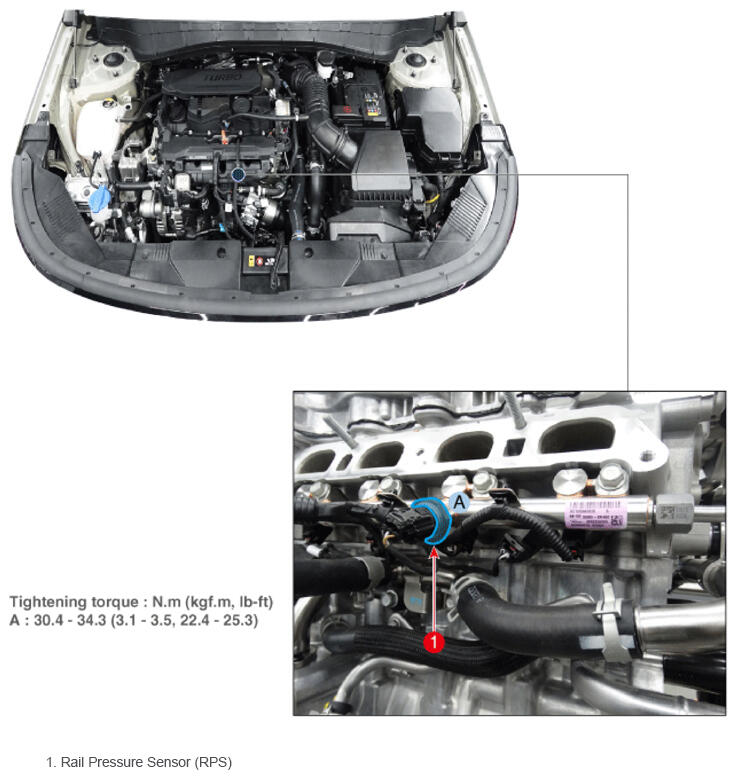

Fig 1: Rail Pressure Sensor Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
