DTC P0602-47: Control Module Programming Error
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

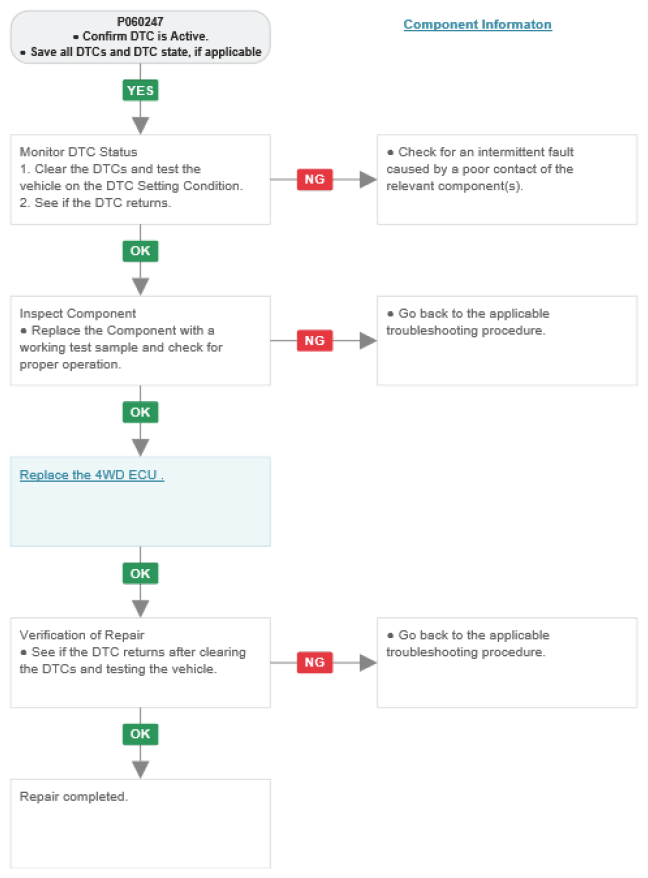

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
