Components Location

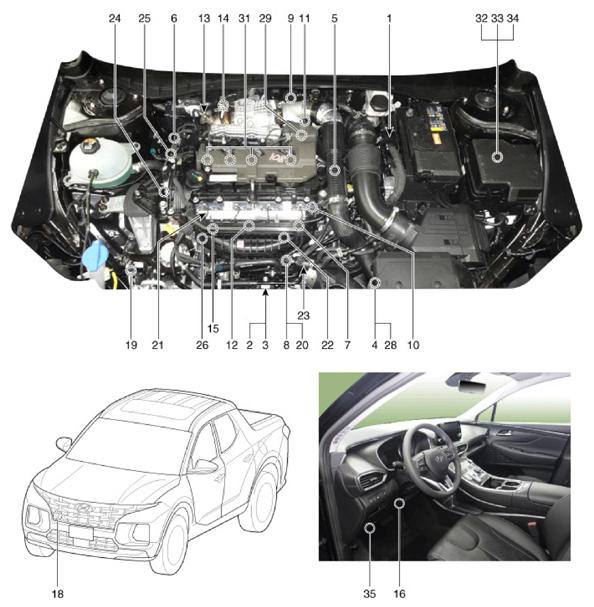

G14793775Courtesy of HYUNDAI MOTOR AMERICA

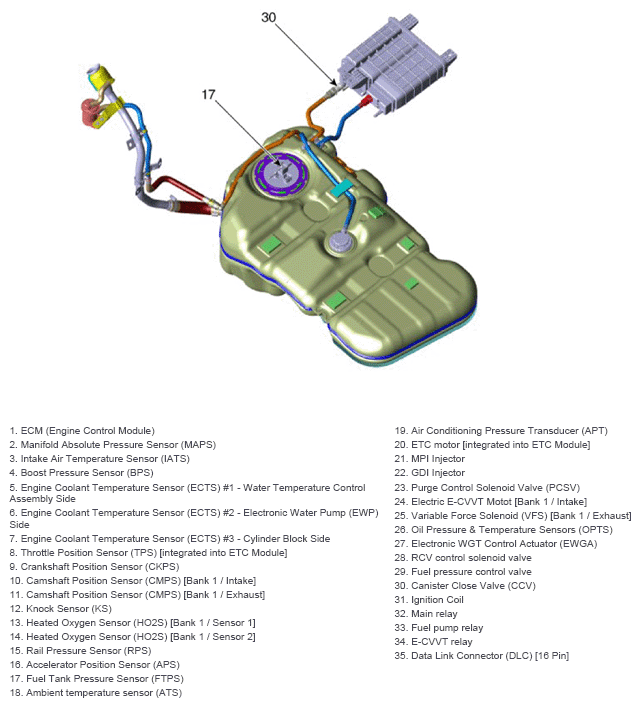

G14793776Courtesy of HYUNDAI MOTOR AMERICA

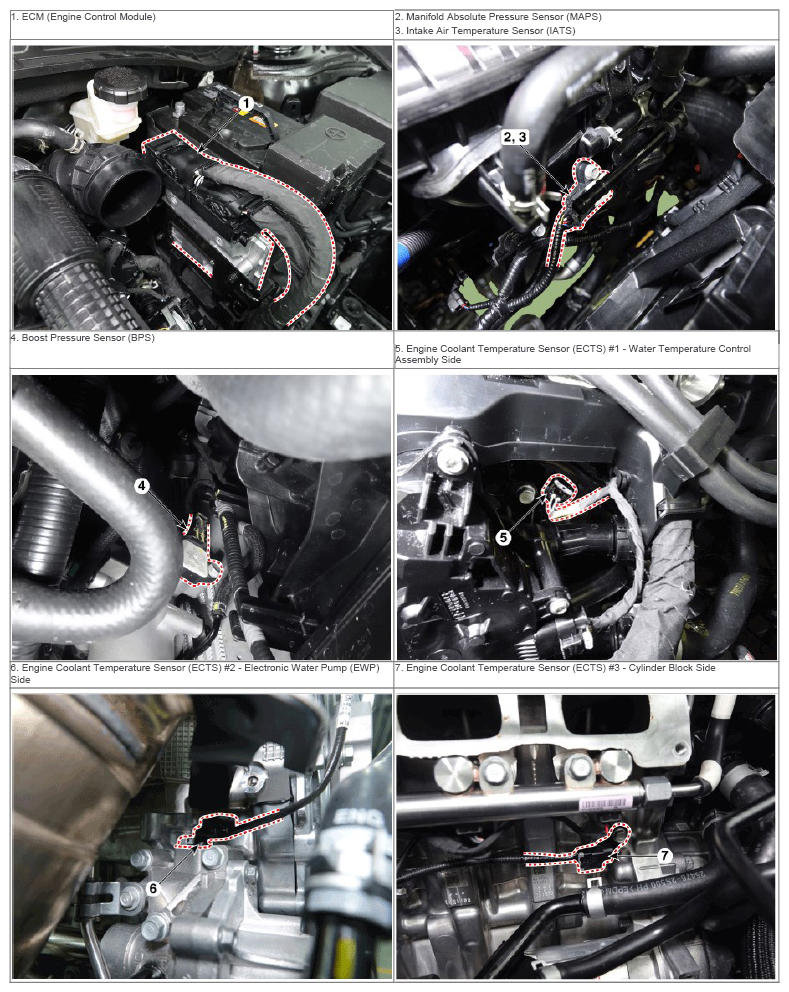

G14793777Courtesy of HYUNDAI MOTOR AMERICA

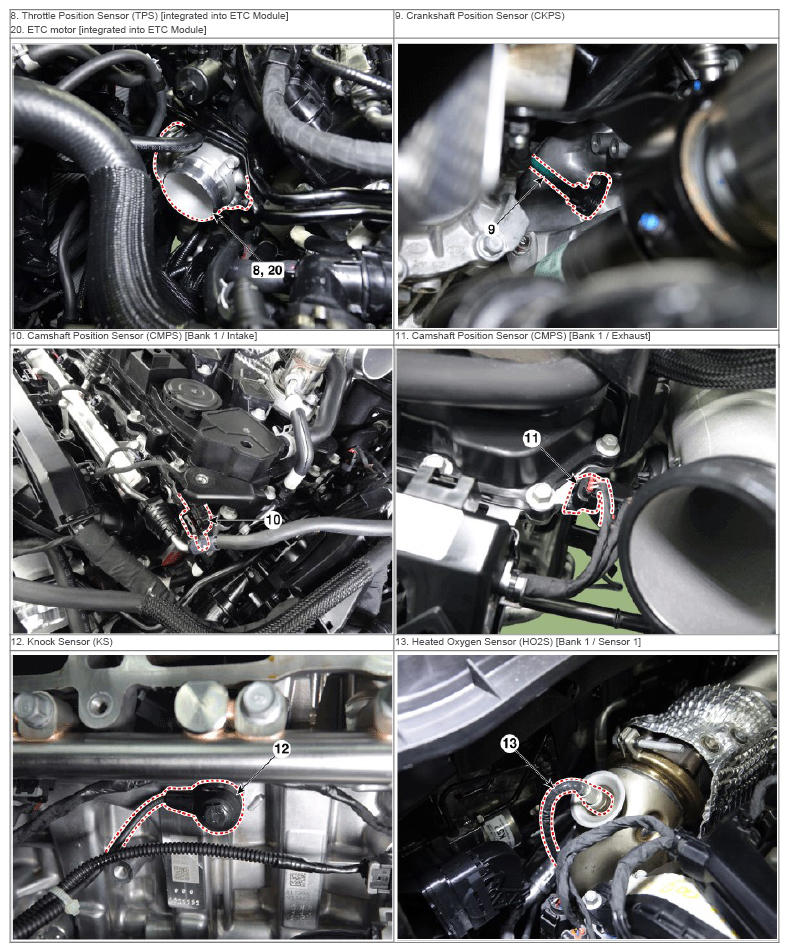

G14793778Courtesy of HYUNDAI MOTOR AMERICA

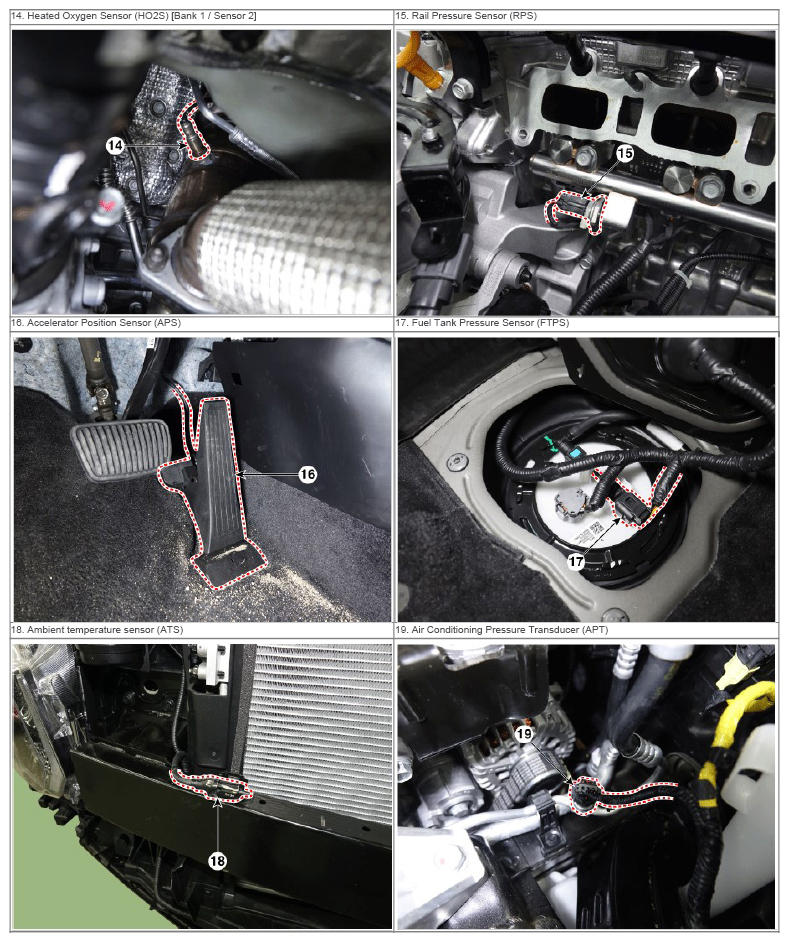

G14793779Courtesy of HYUNDAI MOTOR AMERICA

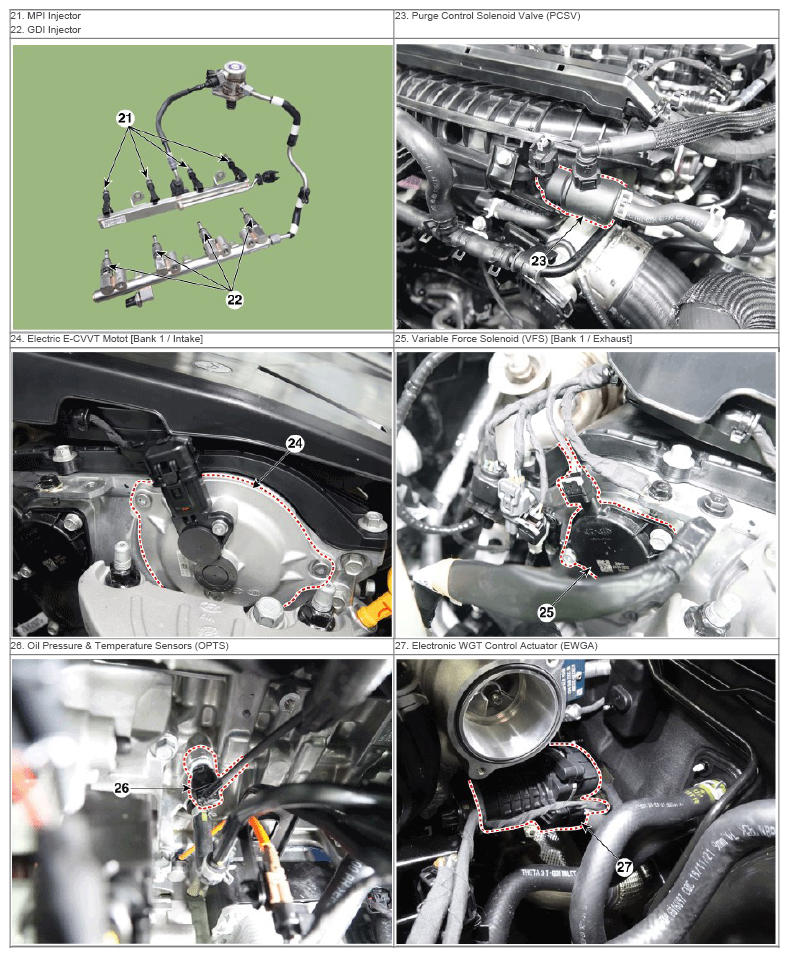

G14793780Courtesy of HYUNDAI MOTOR AMERICA

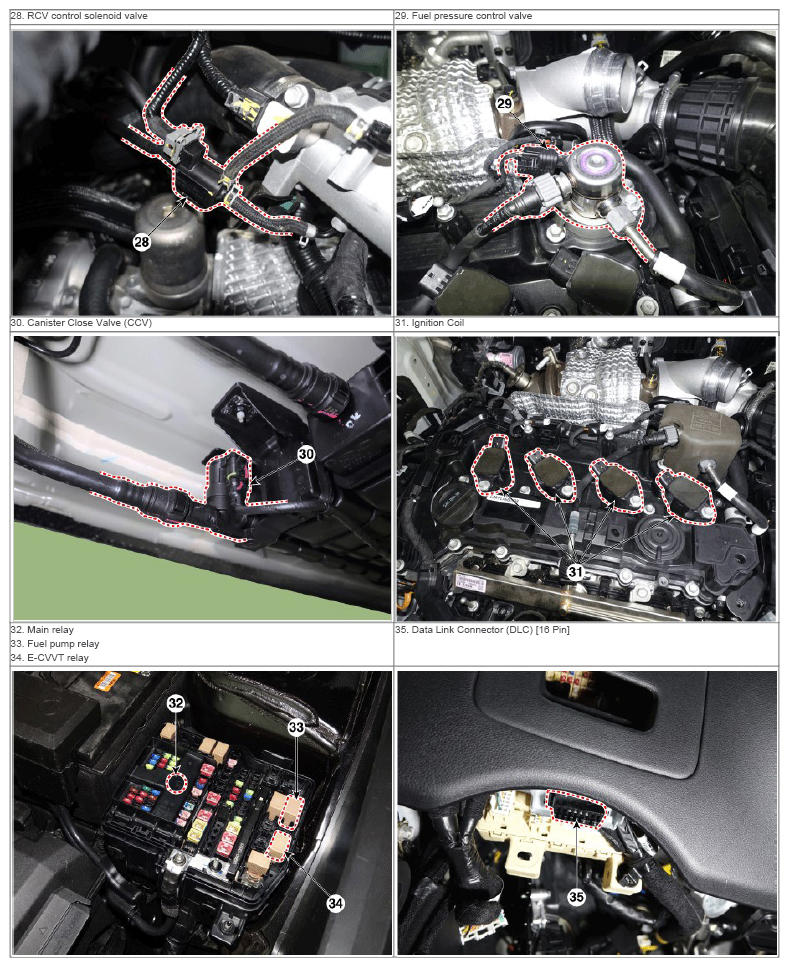

G14793781Courtesy of HYUNDAI MOTOR AMERICA
