Engine Coolant Temperature Sensor (ECTS) #1 - Water Temperature Control Assembly side

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

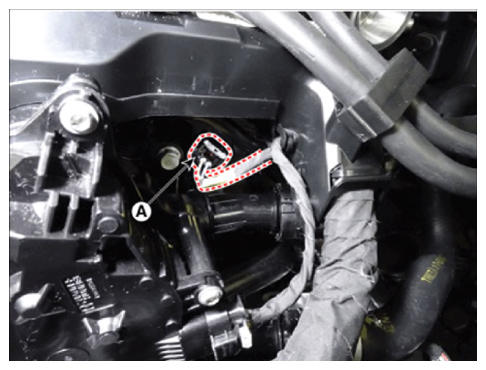

3. Disconnect the engine coolant temperature sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

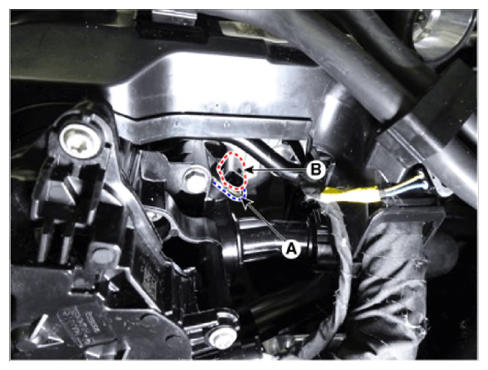

4. Disconnect the fixing clip (A), and remove the engine coolant temperature sensor (B).

Courtesy of HYUNDAI MOTOR AMERICA
