Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the rear seat assembly.
(Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY ")

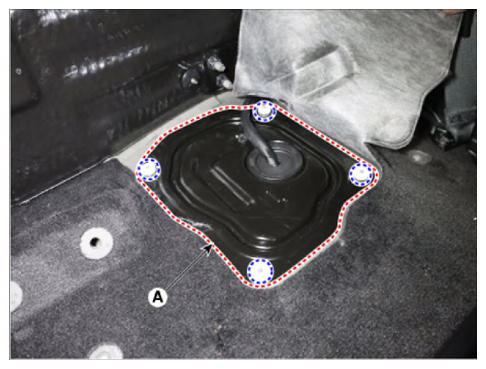

- Remove the fuel pump service cover (A).
Information

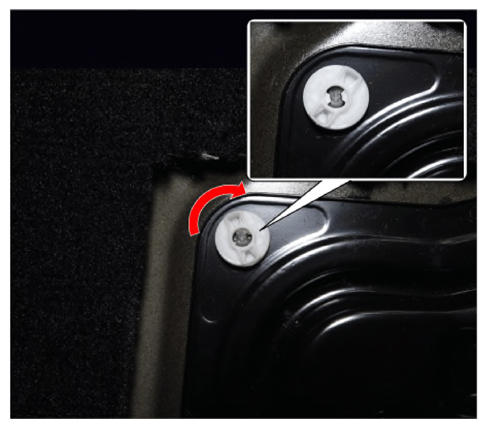

- When removing the fuel pump service cover, remove the 4 clips by rotating them clockwise as shown in the below illustration.

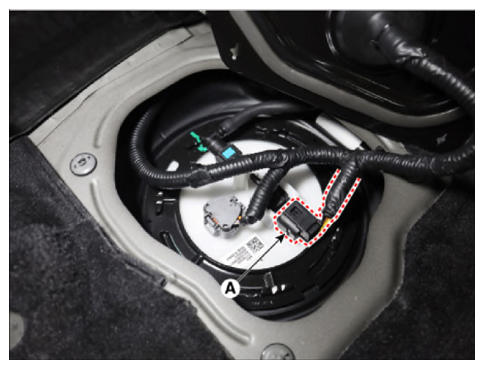

- Disconnect the fuel tank pressure sensor (FTPS) connector (A).

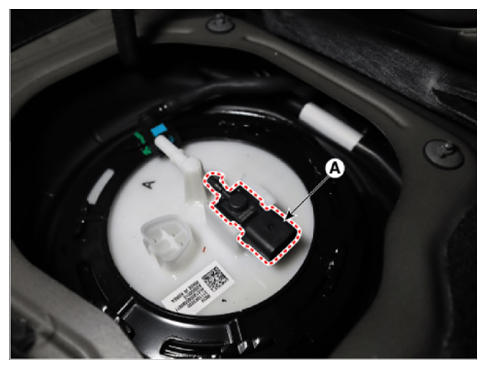

- Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.
