Repair Procedures: Removal
- Set the front tires straight - ahead.
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.

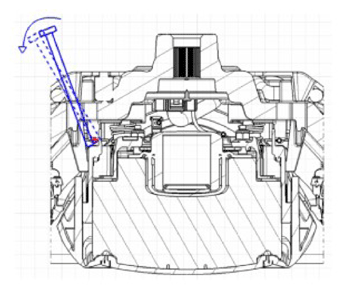

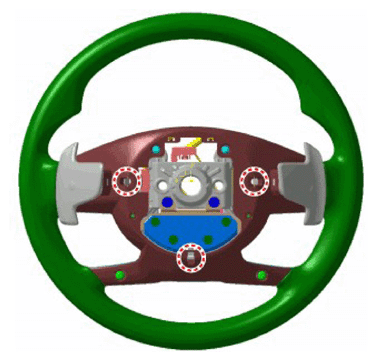

- Put a flat tool (05 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.
- Press both sides in hole order (regardless of left/right order)
- If the DAB removal does not go smoothly even after pressing twice, press the opposite hole again.

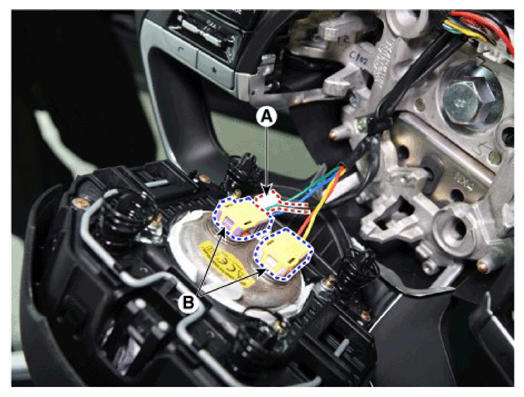

- Remove the airbag module from the steering wheel by disconnecting the horn connector (A) and airbag module connectors (B).
- Remove the steering wheel.
(Refer to Steering System - " STEERING WHEEL ")
- Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

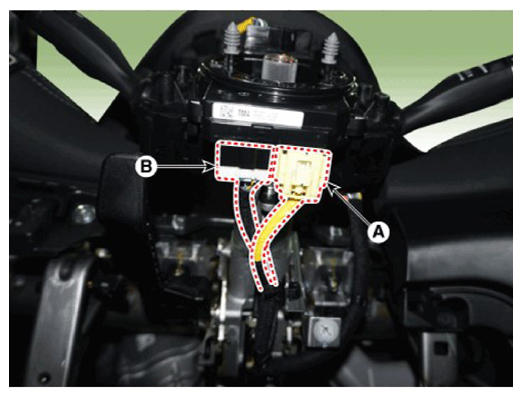

- Remove the clock spring after disconnecting the clock spring connector (A) and horn connector (B).
