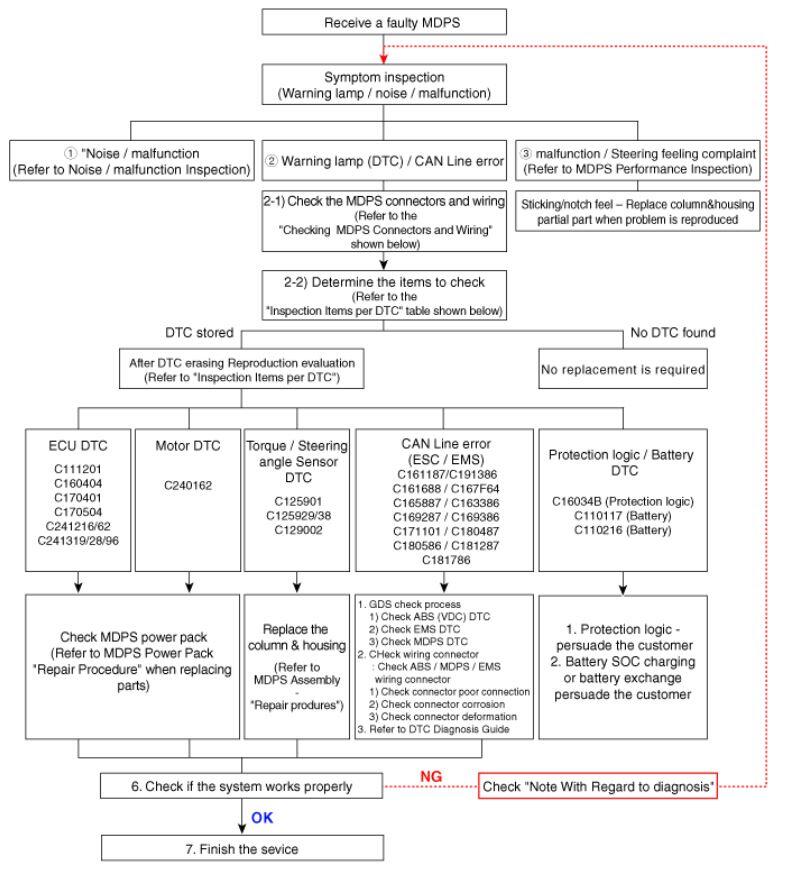

MDPS System A/S Workflow

* For detailed DTC or other DTC A/S procedures, see "MOTOR DRIVEN POWER STEERING DTCS ".

Courtesy of HYUNDAI MOTOR AMERICA

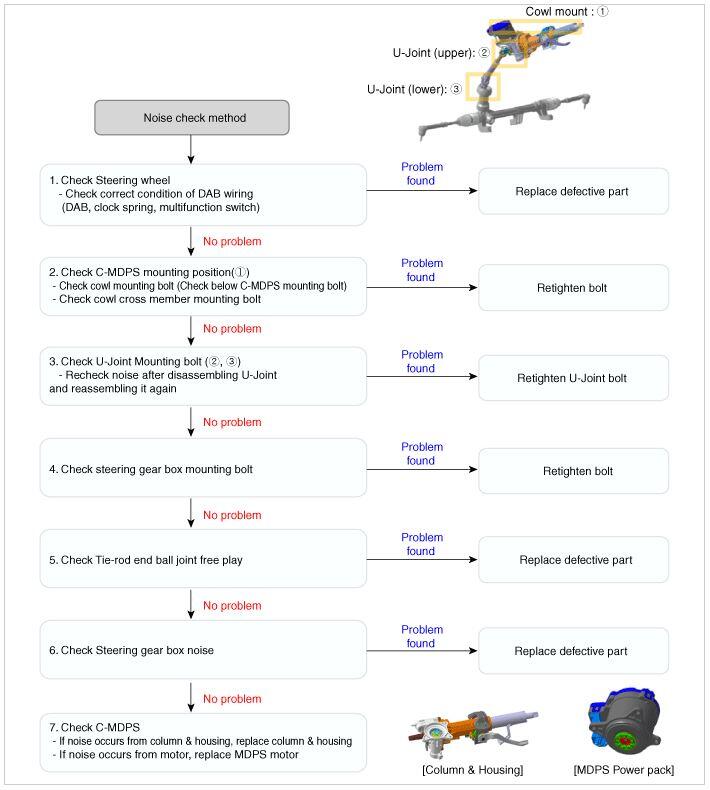

1. Noise/malfunction Inspection

   Courtesy of HYUNDAI MOTOR AMERICA

2. Warning lamp (DTC)/CAN Line error

   2 - 1 Checking Connectors and Wiring

   1. Checking Connectors and Wiring.

      Check for damage, push - back, or improper connection in each connector and wiring.

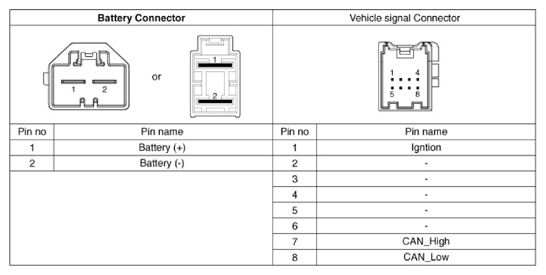

      1. Check the wiring on the vehicle side.
         • Check for open/short - circuit due to faulty connection, damage, or foreign substance.

         Courtesy of HYUNDAI MOTOR AMERICA

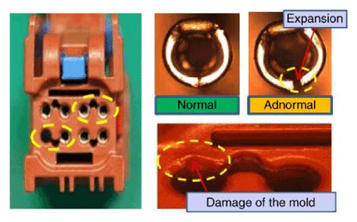

      2. Check the motor connector.
         • Terminal Expansion and damage

         Courtesy of HYUNDAI MOTOR AMERICA

         NOTE:

         • Must be replaced the MDPS motor if occur terminal expansion and damage. (Refer to Motor Driven Power Steering - "MDPS POWERPACK ASSEMBLY  ")

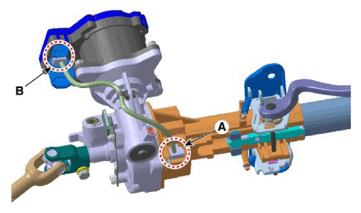

      3. Remove the grommet (A) and then check the wiring on the TAS side (B) and ECU side (C).
         • Check for damage, push - back, or improper connection in each connector and wiring.

         Courtesy of HYUNDAI MOTOR AMERICA

         NOTE:

         • For DTC C125901/C125929/C125938/C129002, exchange MDPS wiring.

           (Refer to appropriate SYSTEM WIRING DIAGRAMS article.)

         • If problems are found during the MDPS wiring check, replace the MDPS column & housing. (Refer to Motor Driven Power Steering - "REPAIR PROCEDURES  ")

      2 - 2 Inspection Items Per DTC

      * For detailed DTC or other DTC A/S procedures, see "MOTOR DRIVEN POWER STEERING DTCS ".

      DTC	Problem	First analysis method	How to repair
      C129002	Torque sensor signal error	First erase DTC,	When the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the column & housing (56390)
      		check connector connection
      C125901 C125929 C125938	Steering angle signal error	Erase DTC after resetting Steering angle zero point check connector connection
      C111201	Torque sensor power supply error	First erase DTC, check connector connection	When the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the power pack (56370)
      C160404	ECU hardware error	Check after erasing the DTC	In case of reoccurrence, replace MDPS power pack (56370)
      C170401	Relay breaking of a wire
      C170504	ECU over/discharge error
      C241216 C241262	Motor circuit break/short
      	Motor current error
      C241319 C241328 C241396	Over current error
      	Motor electric current gate error
      	Broken the motor current sensor
      C240162	Motor circuit error
      C126154	Steering angle zero point error	Check after resetting Steering angle zero point	Resetting Steering angle zero point or replace column & housing (56390)
      		Check sensor connector poor connect
      C161187 C161F64 C161F86	Not received the EMS CAN message Vehicle speed monitoring error Vehicle speed signal error	1. Check chassis CAN condition 2. Check connector connection 3. Check engine ECU 4. Start OFF history confirmation message while driving	Erase DTC (No MDPS replacement)
      C161688	CAN BUS OFF
      C162887 C163386	Not received the cluster CAN signal Cluster display vehicle speed error	2. Check cluster connector connection
      C169287 C169386	Not received the VSM message ESC signal error	Check ESC, check chassis CAN condition
      C171101	ECU abnormal end	Recheck after erasing the DTC
      C180487 C180586	Cannot be received the LKA message _KA signal error	Check LKA, check CAN line
      C181287 C181786	Not received the gateway CAN message Gateway CAN signal error	Check gateway

      (3) MDPS Performance Inspection

      1. Inspect steering angle and DTCs relevant to the steering system.
      2. Inspection for heavy steering effort
         1. Inspect tire pressure and width.
         2. Check DTCs relevant to the CAN communication error.
         3. Check the wheel alignment.

      (4) MDPS common problems

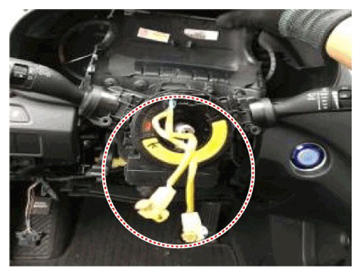

      Case 1	Case 2	Case 3
      Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
      Multifunction switch noise	Clock spring noise	DAB/Wire noise
      Retighten the bolt	Replace clock spring	Rearrange and replace DAB

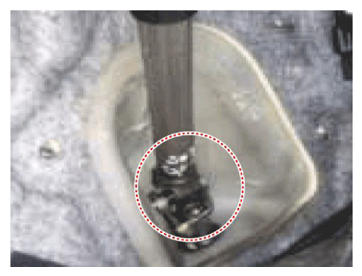

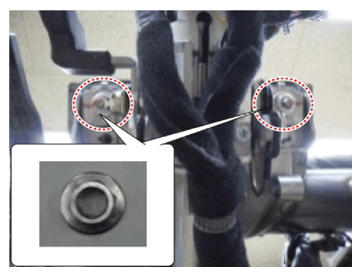

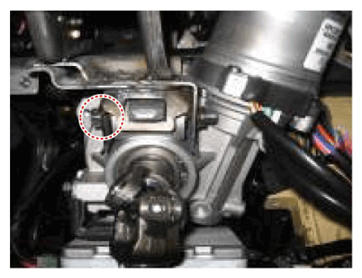

      Case 4	Case 5	Case 6
      Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

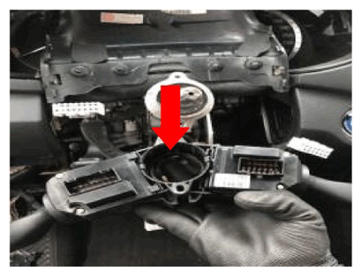

      Multifunction switch noise	M8 nut mount defect	M10 nut mount defect
      Replace multifunction switch	Retighten nut	Retighten nut

      Case 7	Case 8
      Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

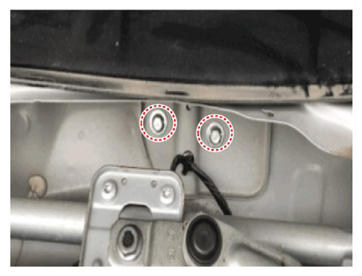

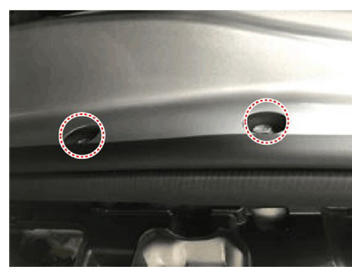

      Cowl top bolt mount defect	Cowl bar nut mount defect
      Retighten cowl top bolt	Replace clock spring

      CAUTION:

      Cautions to be taken when handling the MDPS (Motor Driven Power Steering)

      • Failure occurs due to internal damage because of the drop of and shock and excessive external force on the new partial component.

        → Be cautious of shock on the partial component and replace the damaged part (due to drop, etc.) with a new one.

      • When fastening the steering, excessive impact may result in twisting the center point of the torque sensor.
      • When removing/installing the connector the wiring may be damaged (deformed) by excessive external force.
      • Be cautious when storing and replacing the partial components under the abnormal temperature and humidity conditions.
