Components Location

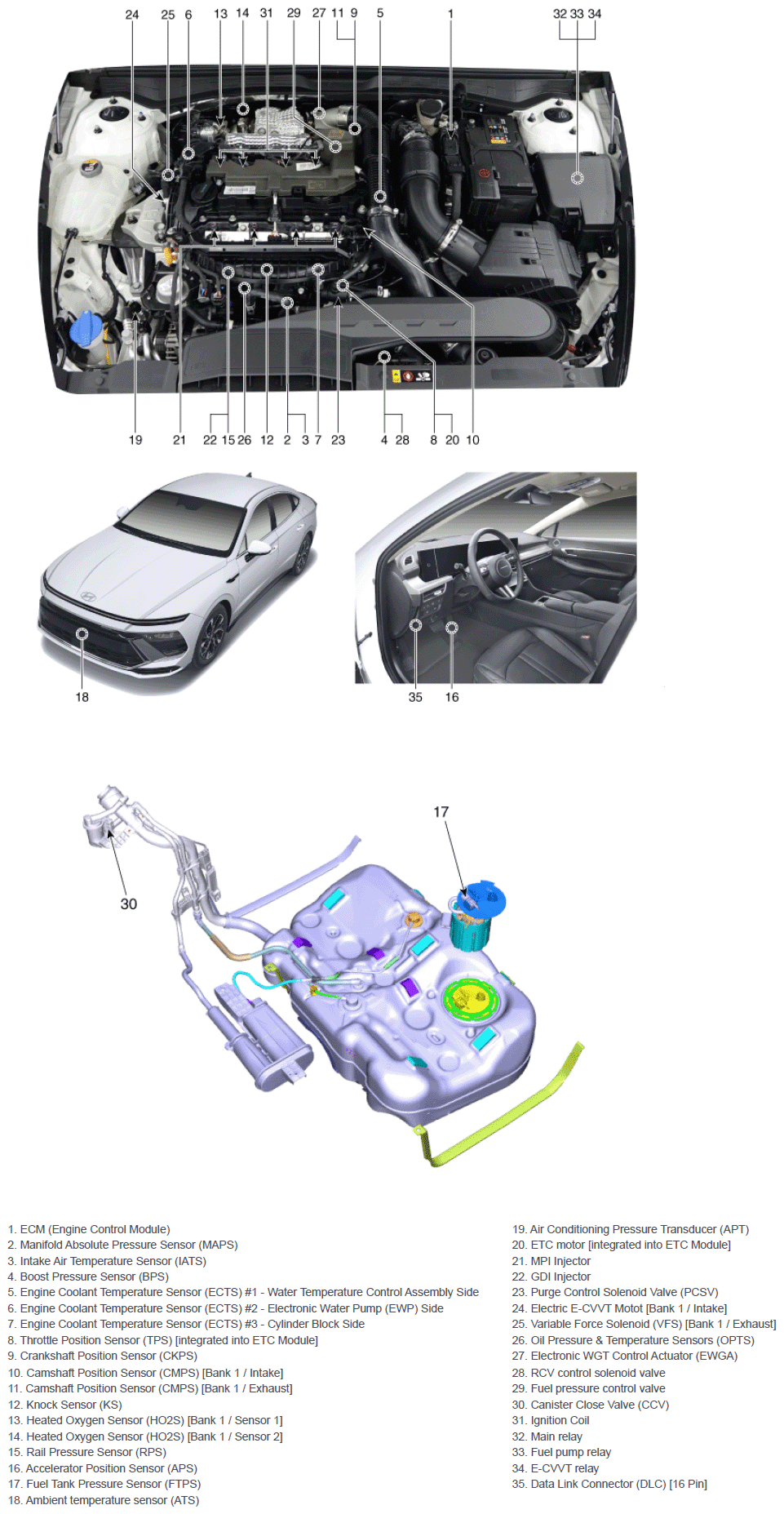

G16742708Courtesy of HYUNDAI MOTOR AMERICA

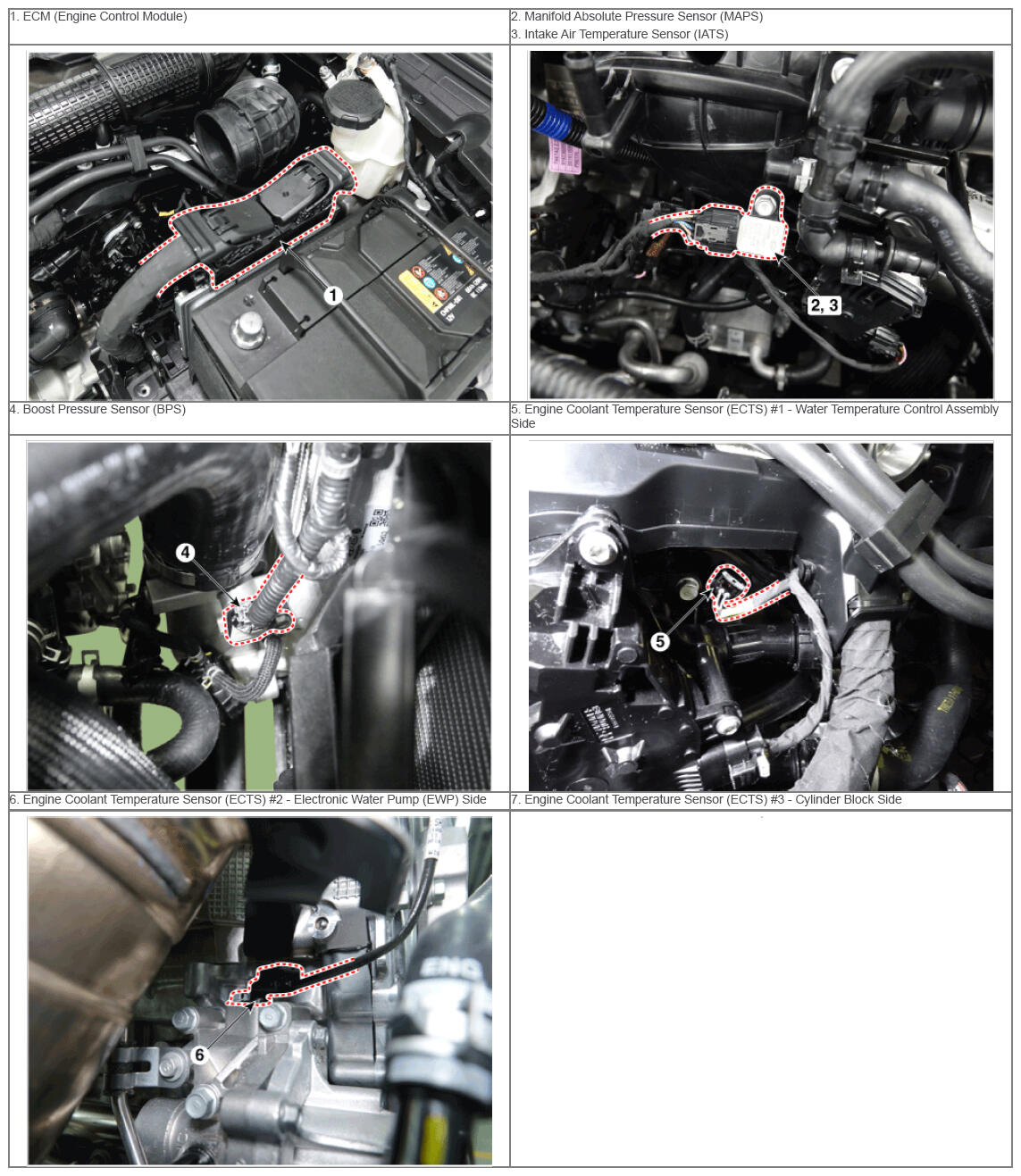

G16742709Courtesy of HYUNDAI MOTOR AMERICA
G16742710Courtesy of HYUNDAI MOTOR AMERICA
G16742711Courtesy of HYUNDAI MOTOR AMERICA
