Components Location

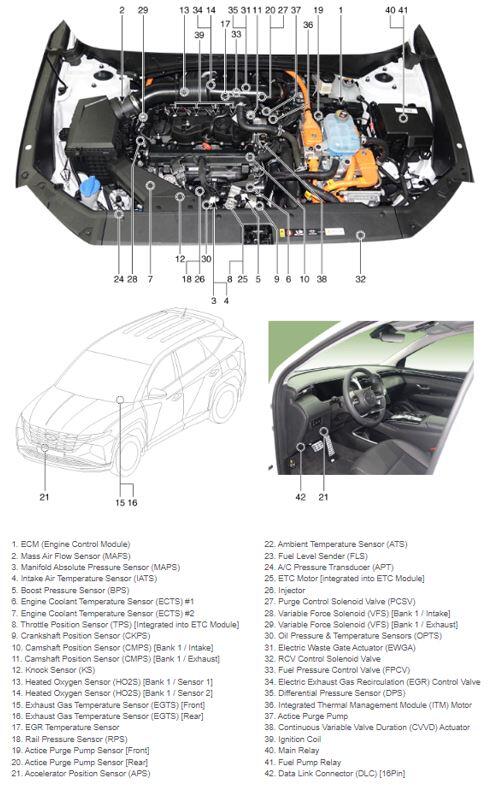

G16119931Courtesy of HYUNDAI MOTOR AMERICA

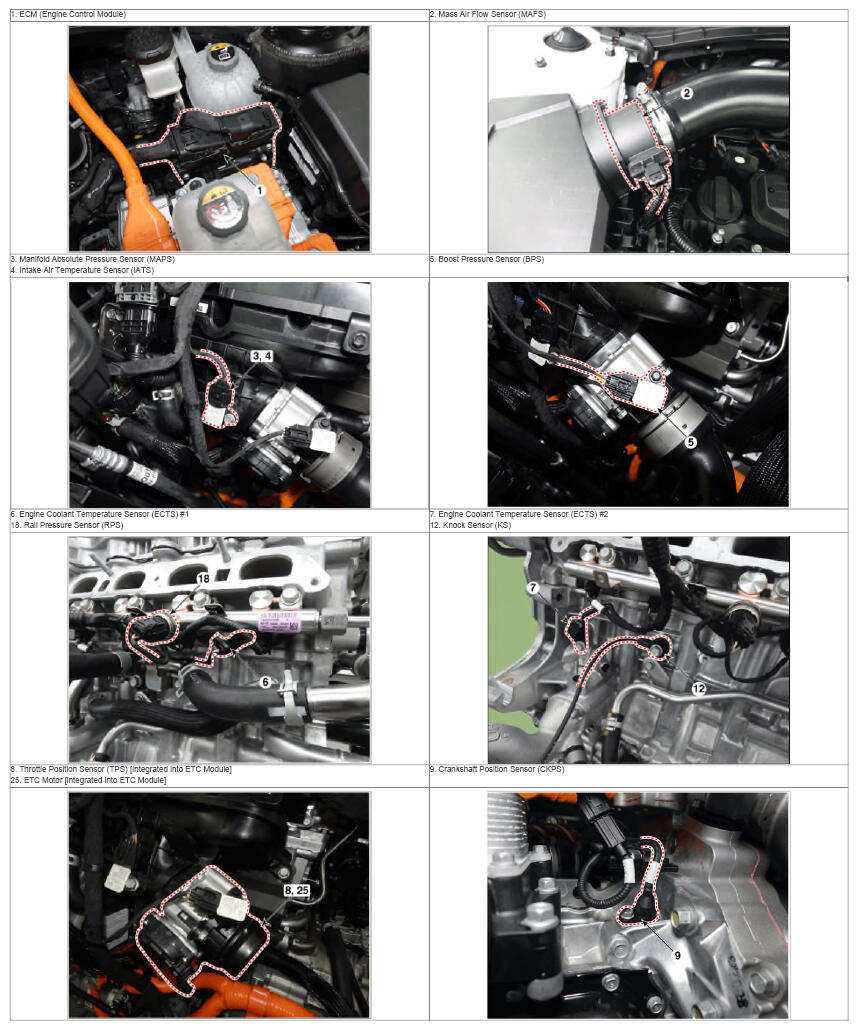

G16119932Courtesy of HYUNDAI MOTOR AMERICA

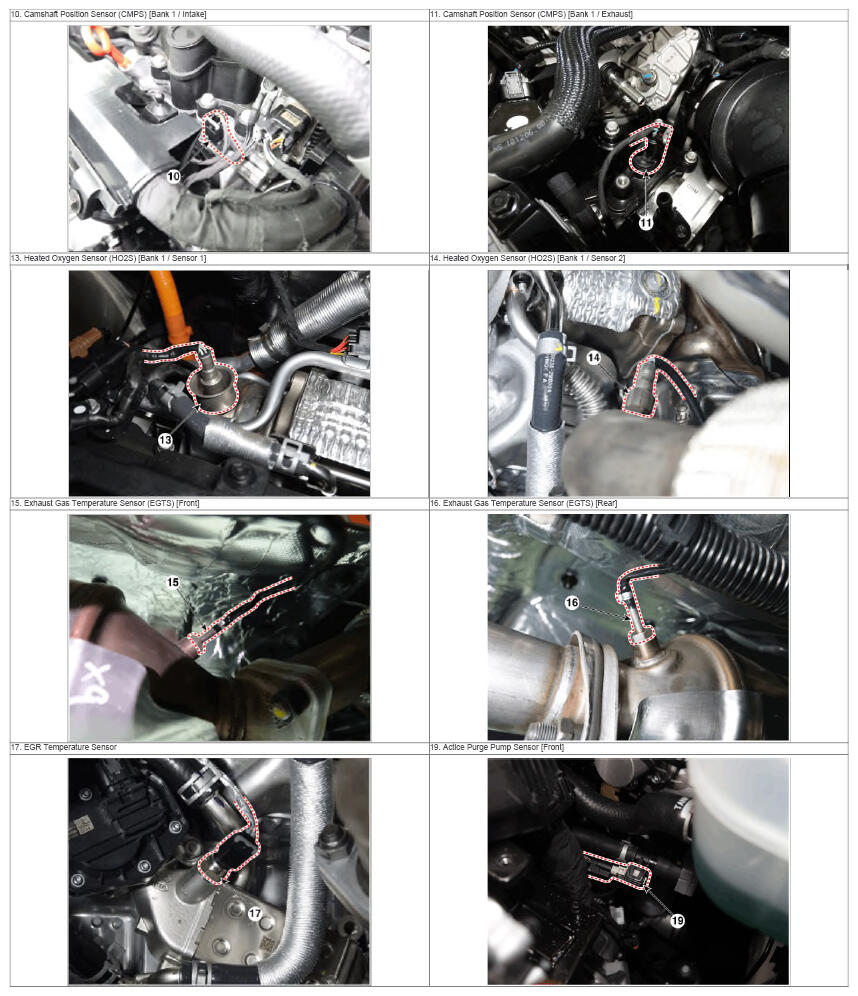

G16119933Courtesy of HYUNDAI MOTOR AMERICA

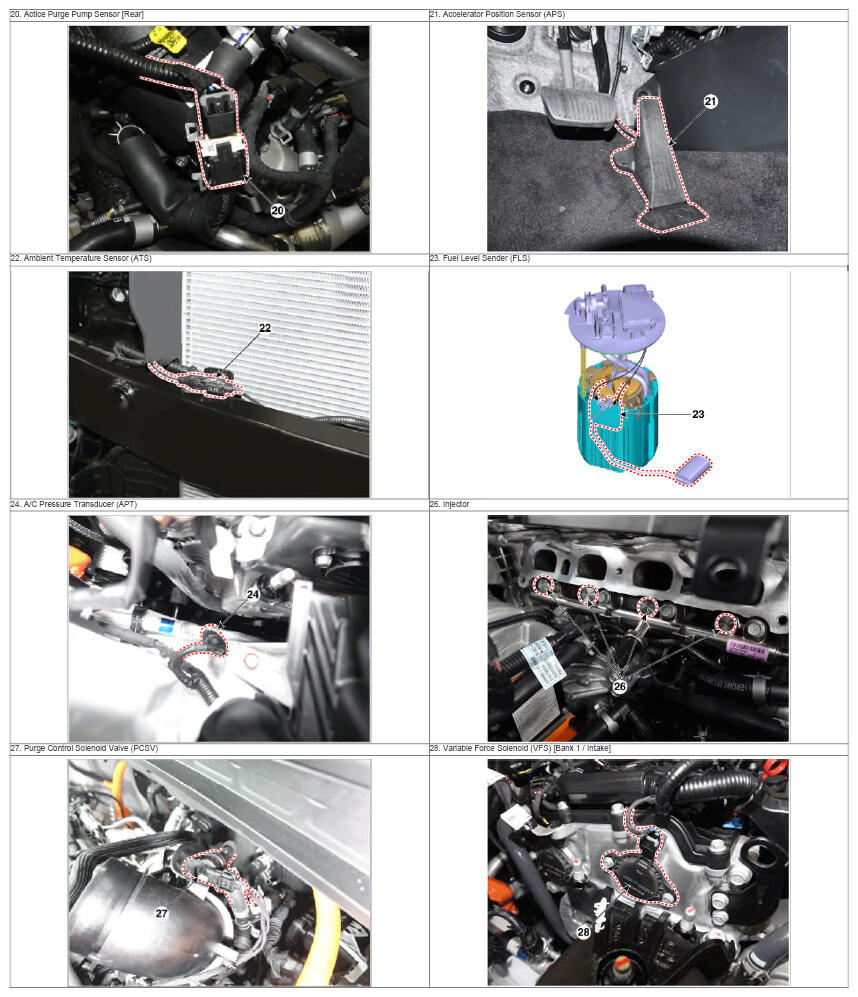

G16119934Courtesy of HYUNDAI MOTOR AMERICA

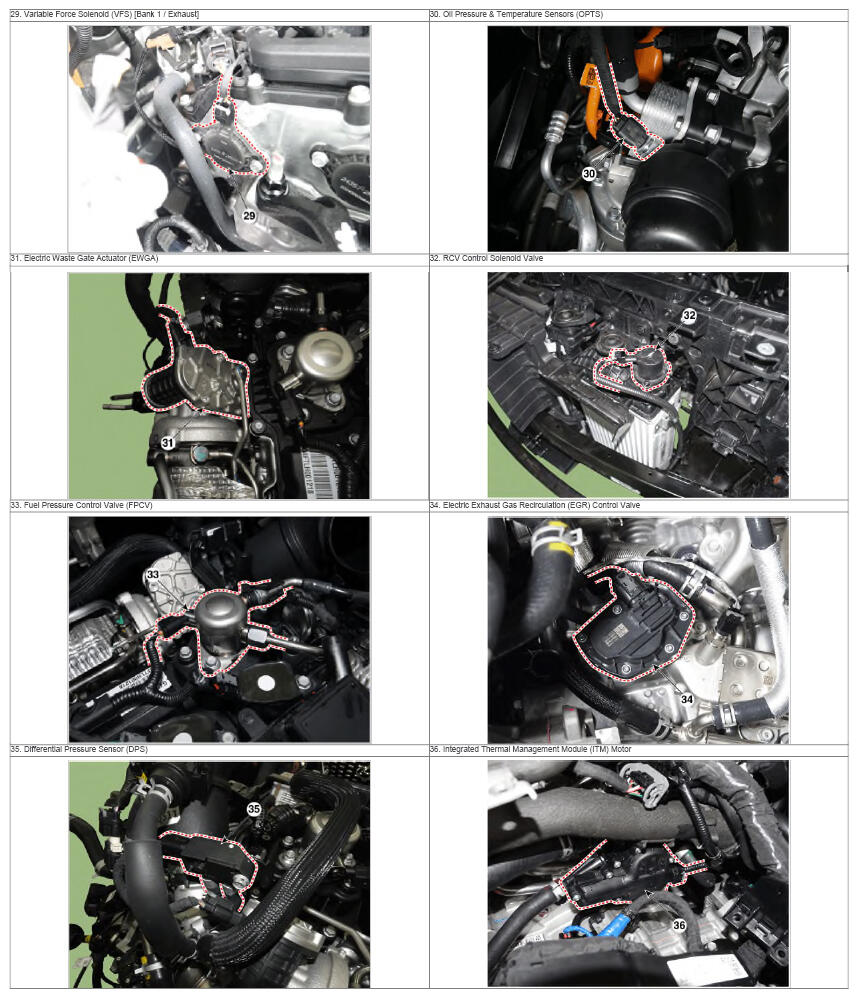

G16119935Courtesy of HYUNDAI MOTOR AMERICA

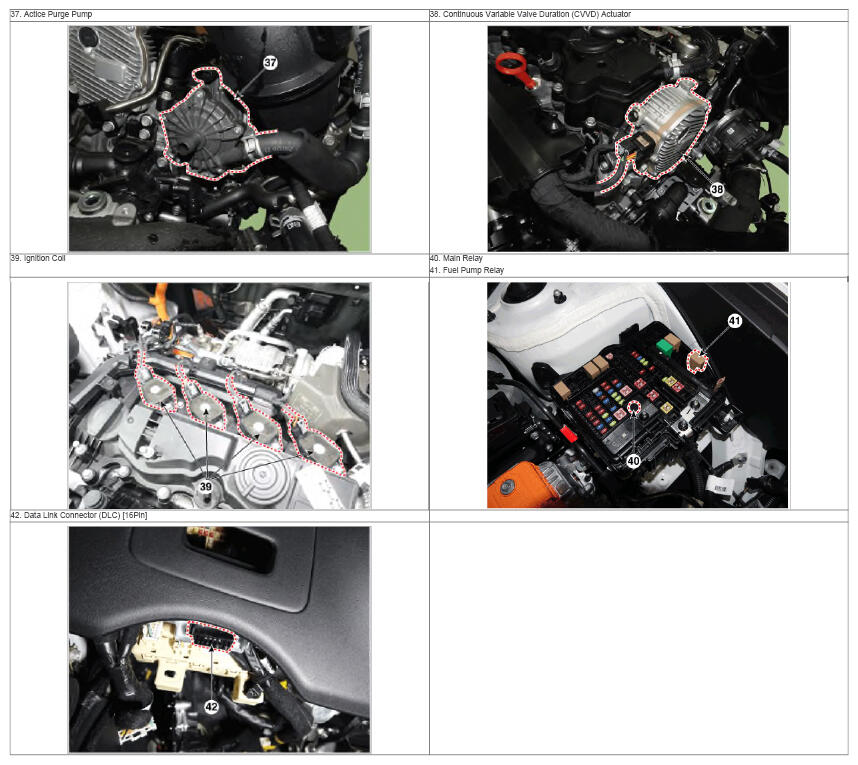

G16119936Courtesy of HYUNDAI MOTOR AMERICA
