Hyundai
>>
2024
>>
Tucson Hybrid N Line
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

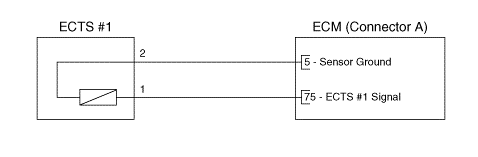

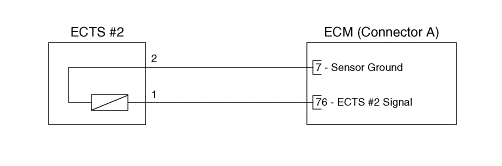

Circuit Diagram: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
